Note: Due to supply problems, the actual voltage may be larger, please refer to the received one.

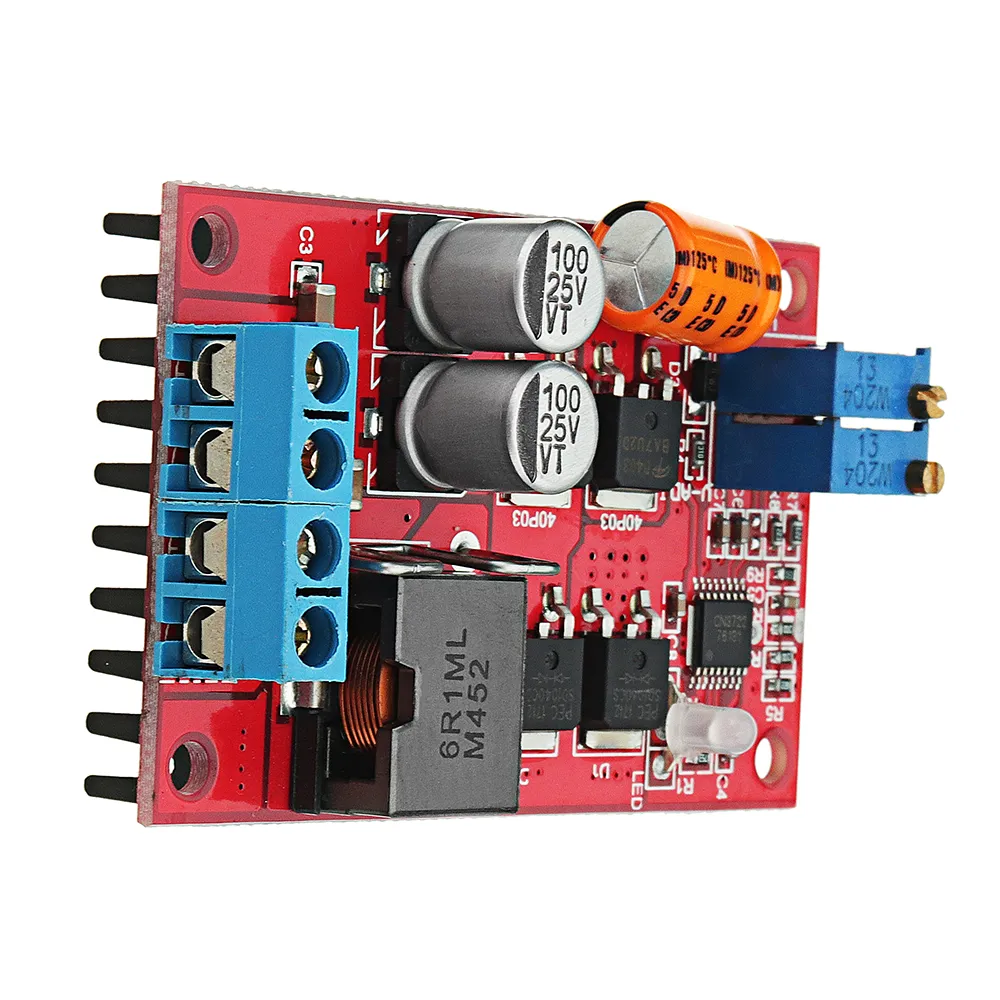

Features:
1W-100W 9V-28V is suitable 9V 12V 18V 24V solar panels to the batteries,nickel-cadmium,lithium batteries (battery) charging,wind turbines solar street lamps.
Input and output terminals are made of high-end switching power supply for high-frequency low-impedance electrolytic capacitors (LOW ESR), ensure that the output ripple. Can effectively filter out the switching power supply glitches.
Parameters:
The modular nature: a real MPPT solar maximum power poin tracking, automatic intelligent charge management, low power consumption
Input voltage: DC 8-28V input DC voltage. (prohibition AC input)
Output voltage: DC 5-26V stepless transmission.
6V battery can be charged either 12 or 8.4V/12.6V/16.8V lithium battery,7.2V/10.8V/14.4V lithium iron phosphate battery,2-4 string lithium batteries, lithium iron phosphate charge management board.
Output current: 2A/5A maximum charging current in two: A version 5A B version of A 2A 5A default shipping version
Charge indicator: yes. Fast charging red light long bright red and blue lights flash alternately charged. Full automatic stop.
MPPT function: a MPPT maximum power poin automatic tracking, to maximize the full use of solar charging
Low pressure: 1V (as is the step-down voltage regulator, the input voltage is at least higher than the output 1V)
Low power consumption: yes! Ultra-low pressure designed to achieve low power consumption and high efficiency, professional adaptation of solar panels
Operating temperature: industrial grade (-40 to +85 degree)
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Conversion efficiency: Max 93% peak 95% for different lighting conditions vary.
Charging: automatic intelligent three-stage charging mode. Self-tracking solar power charge current automatically adjust the size
No-load current: 3MA even weak morning sunlight can easily start automatically, eliminating manual switch.
Input reverse polarity protection: yes. Exclusively designed ultra-low dropout prevention MOS transistor reverse polarity protection, input reverse is not working.
Step 1: connect the solar cell, do not take the bottle to be charged, if the output voltage in step 2. If there is no transfer of small output counterclockwise slowly until the output voltage MPPT.
Step 2: counterclockwise transfer of small output voltage until the red and blue lights flashing, then coarse output voltage to a full cut-off voltage
Step 3: access dead battery, and at the output string ammeter to monitor the charging current, MPPT trimming potentiometer until the charging current maximum.
Step 4: access is just full of batteries, if the blue light is clockwise turn up the output voltage until the red light. Then transfer a small output voltage slowly counterclockwise until just blue lights, and then use a multimeter to measure to determine the cut-off voltage is correct to avoid overcharge!
Transfer methods instead of using the power supply of solar energy:
Step 1: the power supply was adjusted Solar MPPT voltage (such as 18V)
Step 2: the power supply connected to the input terminal, do not take the battery to be charged, if the output voltage is adjusted clockwise until no large MPPT voltage output. Then slowly counterclockwise until the transfer of small MPPT just have the output voltage.
Step 3: anti-clockwise turn down the output voltage until the red and blue lights flashing, then coarse output voltage to a full cut-off voltage
Step 4: access is just full of batteries, if the blue light is clockwise turn up the output voltage until the red light. Then transfer a small output voltage slowly counterclockwise until just blue lights, and then use a multimeter to measure to determine the cut-off voltage is correct to avoid overcharge!
Note:
The first charge in advance regulate the output voltage and please closely monitor the battery voltage to prevent overcharging! Do not unprotected lithium batteries!
Good product, but cannot deliver charging current of 5A, unless there is proper heatsink on the two diodes and the two mosfets. This may also be due to RCS being bigger than 0.04Ω. In any case the existing heatsink is not correctly glued underneath the components, as it touches only partially some of the heated parts. Even worse, the metal heatsink touches the pins of some other components and there is danger of shorts and damage. Furthermore, in my unit, the dual led is soldered the other way around, and as a result, when it charges a battery, the blue led is on, and when the battery gets full, the red led comes on. Nevertheless, it is a good mppt charger. I attach the Charging Profile and its Diagram, taken from CN3722 datasheet.
This device works quite well at lower currents (< 3A). MPPT via panel voltage tracking seems to work quite well. I have mine outputting an almost consistant 10 Watts(2.8A @ 3.6v) into a 1s20p Lithium battery(nom. 3.6v, 45Ah) from a 12.5 Watt panel (21Voc, 17Vmp), so approx. 80% efficiency, even in 42 degree celcius ambient heat with panel temperature above 60 deg C !! (Australian summer). In 'cooler' summer weather (mid 20's) I get maybe an extra Watt out at mid day (~11W -ish).
Although this is advertised as working up to 5A, even after extensive testing I was not able to get much above 4A with a 25Watt(measured) panel and very good heatsinking: I only get 15 Watts out (4.2A@3.6v) so efficiency at higher currents suffers badly (25W in, 15W out = ~60% efficiency)
This item, as shipped, will NOT work with 1S lithium because the regulation voltage can only be adjusted down to ~6.5v, however, it is relatively easy to modify it for 1S operation. To do this, simply replace the 22k resistor (R7, marked 223, 0603 size) with something around 75k to 100k. I used an 82k resistor which alows me to adjust regulation from ~3.0v to ~9v.
Note that the supplied heatsink itself is okay, but it is useless as supplied because it is mounted with a thick dob of silicone adhesive. This is because A) the current sense shunt resistor is thru-hole and protrudes, and B) the PCB tracks under it have exposed solder pads. Poor design/lack of forethought by whoever did the PCB layout!. Therefore, mounting the heatsink directly to the PCB would cause a short circuit. I have modified mine with heatsinks on the top side packages(Mosfets and Diodes), and also a heatsink with a drilled hole (to clear the shunt solder pad) un the underside using double-sided tape as insulation to avoid shorts with the board tracks. Not exactly ideal, but much better than as-supplied.
