HENGE UBEC 6V 6A 2-6S Lipo NiMh Battery Switch Mode BEC for RC Airplane

HENGE UBEC 6V 6A 2-6S Lipo NiMh Battery Switch Mode BEC for RC Airplane

Roymall C.o.

$2.95 /$12.19

4.11253

Shipping to: United States

Express: 7-12 business days

Standard: 15-25 business days

location

Sebete goş Şu wagt satyn al

$9.99 /$12.19

Coupon Code

Direct purchase from the factory

*Name:
*Email:
*Phone:
*Quantity:
*Content:
Attachment:

Supports JPG, JPEG, PNG, PDF, EXCEL, WORD, RAR, ZIP, 7z formats

Credit or Debit Card

Ygtybarly howpsuz töleg

Mugt sowgat

Islendik satyn almagyňyzda mugt sowgat

Iberiş syýasaty

$9.9-dan ýokary sargytlarda mugt standart iberiş

Yzyna gaýtarma syýasaty

Harytlar alynan günden 40 gün içinde yzyna gaýtarylýar. Yörite harytlar yzyna gaýtarylýanok. E-sowgat kartoçkasy bilen satyn alynan harytlar diňe çalşylýar; yzyna gaýtarylýanok.

Mugt Sowgat

Roymall-a hoş geldiňiz, premium sowgatlar satyn almak üçin hünärmen web sahypaňyz. Goldawyňyzy gymmatlandyrýarys we her sargydyňyzda mugt sowgat hödürleýäris.

Iberiş Syýasaty

Sargytlaryňyz 2-5 iş gününde eltip beriler. $9.9-dan ýokary sargytlarda mugt iberiş.

1. Yzyna Gaýtarma Syýasaty

Harytlar 40 gün içinde yzyna gaýtarylýar. Yörite harytlar yzyna gaýtarylýanok.

2.Yzyna Töleg Syýasaty

Töleg original töleg usuly bilen yzyna gaýtarylýar.

Videos for similar product

Loading product videos...

❮

❯

Products related to this item

Loading related products...

❮

❯

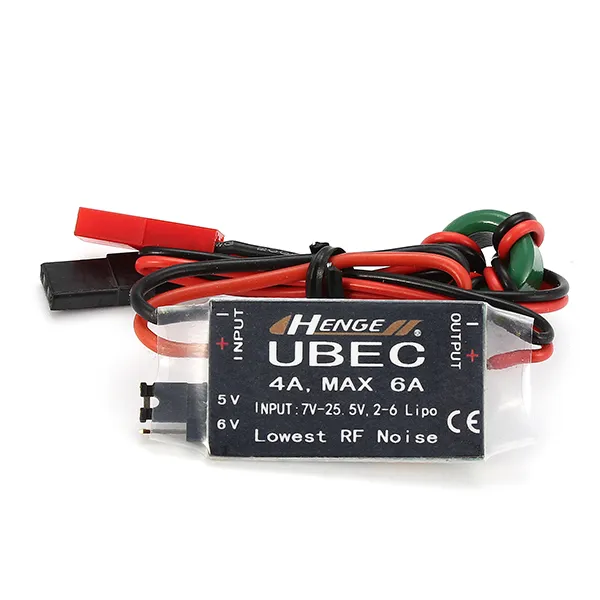

Switch Mode UBEC HENGE 5v/6v 4A/6A, 2-6S LIPO/ 6-16 cell Ni-Mh. Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93%.

Description:Brand Name: HENGEItem Name: 4A-UBECOutput Voltage:5V/4A or 6V/4A(Selectable by using a jumper connector)Input Voltage:7V-25.5V (2-6S Lipo or 5-18 cells NiMH /NiCd)Continuous output current: 4APeak output current:6A(Less than 15 second)Ripple:less than 45mVpu2010p(@2A/12V)Size: 35mmx20mmx5.8mm(L*WX*G)Weight: 14g
Features:
Uses an advanced switch mode DC-DC regulator IC.Having protective function of overcurrent or overheat.Highest efficiency of IC is 93%
4A Output Voltage and 6A peak output current can provide sufficient current for RC model.

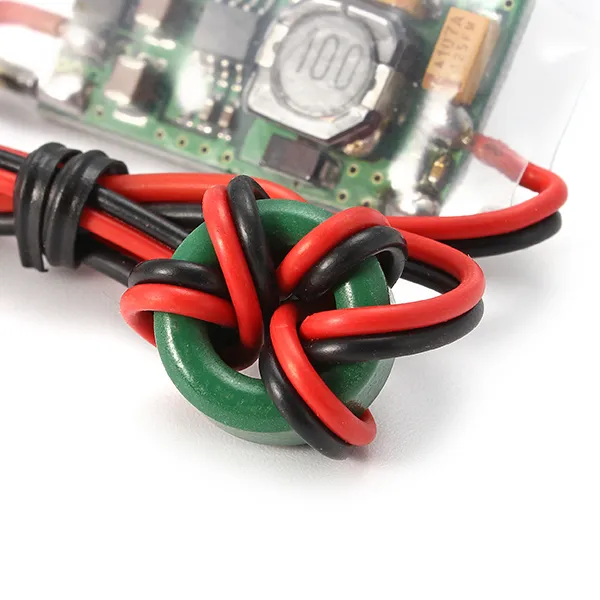

Output cable was added Magnetic filter to reduce electromagnetic interference.
The working status is shown by an LED, it lights when the UBEC works normally.
Enough voltage operating range(7V-25.5V)
It is very suitable for RC airplane and other RC models especially when the built-in BEC in the speed controller has a very limited output capability.
Note:
Even though 4A-UBEC was added Magnetic filter to reduce electromagnetic interference. electromagnetic interference is inevitable for switching type UBEC in sometimes.
In order to receiver operating ,Please do not put Output filter magnet and MPU together.

Package Included:
1 x HENGE UBEC

Reviews(132)

5.00

hardrain

5.0

This UBEC looks good and is small and light. I bench-tested it and it works as expected: at 4Amps output decreases to 4.86V (-2,8%). At 5 Amps Vout goes down to 4,8 (-4%) but it is still stable. Above 5 voltage drops fast. Overload protection works well.
Under charge the heat is reasonable, but I recommend to place it in a ventilated place. At the end. I think it can be placed in models with 4+ servos and give a good service.
alasdairMcC454

5.0

Nice clean output, measured about 2mV of ripple at 2A load, same at 1A. With 2A continuous it barely gets warm.
One of the best BEC's I've tested for output regulation, low noise and continuous current delivery.
