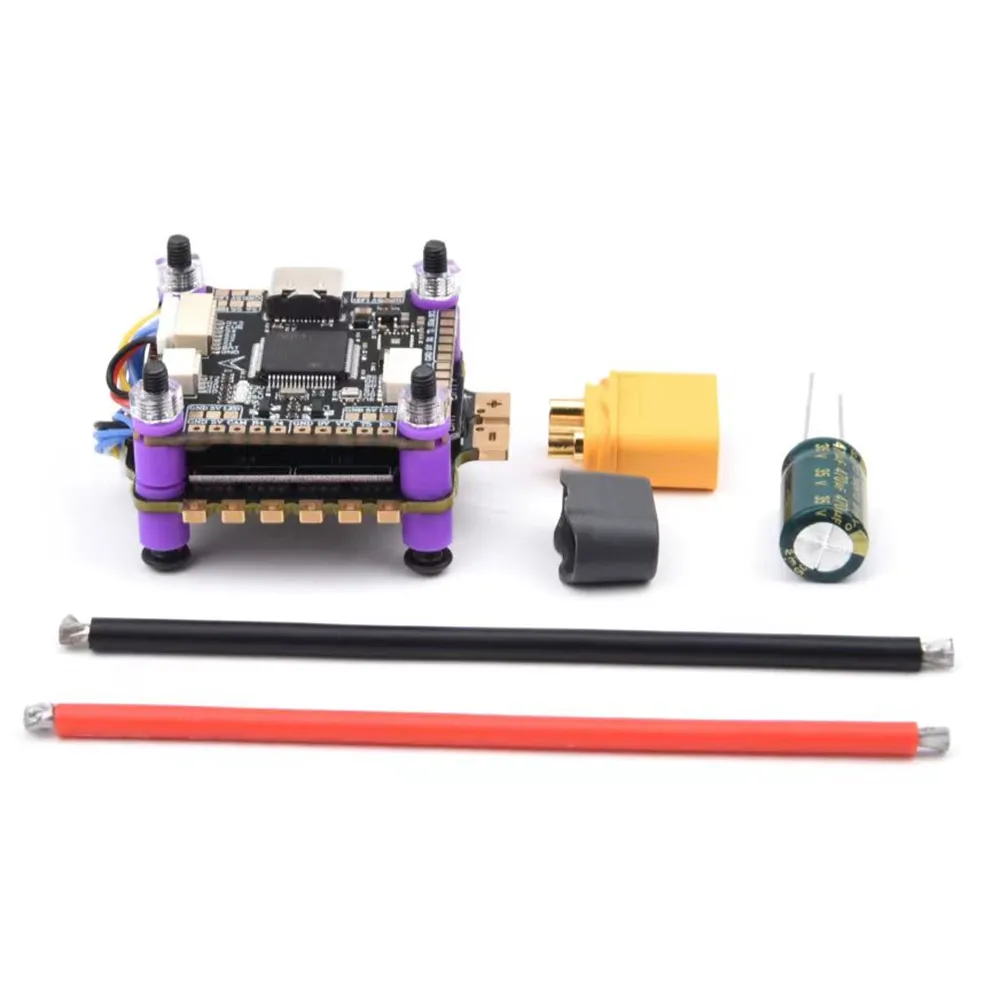

30.5x30.5mm F405 F4 Flight Controller with 5V 10V BEC Output & 60A BLS 4in1 3~6S ESC Stack for FPV Racing Drones

30.5x30.5mm F405 F4 Flight Controller with 5V 10V BEC Output & 60A BLS 4in1 3~6S ESC Stack for FPV Racing Drones

Roymall C.o.

$55.99 /$68.31

4.41126

Shipping to: United States

Express: 7-12 business days

Standard: 15-25 business days

location

Sebete goş Şu wagt satyn al

$55.99 /$68.31

Coupon Code

Direct purchase from the factory

*Name:
*Email:
*Phone:
*Quantity:
*Content:
Attachment:

Supports JPG, JPEG, PNG, PDF, EXCEL, WORD, RAR, ZIP, 7z formats

Credit or Debit Card

Ygtybarly howpsuz töleg

Mugt sowgat

Islendik satyn almagyňyzda mugt sowgat

Iberiş syýasaty

$9.9-dan ýokary sargytlarda mugt standart iberiş

Yzyna gaýtarma syýasaty

Harytlar alynan günden 40 gün içinde yzyna gaýtarylýar. Yörite harytlar yzyna gaýtarylýanok. E-sowgat kartoçkasy bilen satyn alynan harytlar diňe çalşylýar; yzyna gaýtarylýanok.

Mugt Sowgat

Roymall-a hoş geldiňiz, premium sowgatlar satyn almak üçin hünärmen web sahypaňyz. Goldawyňyzy gymmatlandyrýarys we her sargydyňyzda mugt sowgat hödürleýäris.

Iberiş Syýasaty

Sargytlaryňyz 2-5 iş gününde eltip beriler. $9.9-dan ýokary sargytlarda mugt iberiş.

1. Yzyna Gaýtarma Syýasaty

Harytlar 40 gün içinde yzyna gaýtarylýar. Yörite harytlar yzyna gaýtarylýanok.

2.Yzyna Töleg Syýasaty

Töleg original töleg usuly bilen yzyna gaýtarylýar.

Videos for similar product

Loading product videos...

❮

❯

Products related to this item

Loading related products...

❮

❯

Specifications:

Model: F405 FC+60A ESC

Iterm Name: 30.5x30.5mm Stack

F4 F405 Flight Controller:

Product Parameters:
MCU: STM32F405RGT6 168MHz
Gyroscope: Mpu6500
Baro:Bmp280
OSD: Betaflight SPI OSD DJI HD OSD(UART5)
Black box: 16MB
6x Uarts: UART 1/2/3/4/5/6
4x PWM outputs
1x I2C
2x LEDs for FC STATUS (Blue) and 3.3V indicator(Red) and 5V indicator(Red) and 9V indicator(Red)
USB Type-C(USB2.0)
1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Curr/Rx3)
1x JST-SH1.0_6pin connector (9V/GND/T5/R5/GND/R2)
VTX 9V filtered power
DJI FPV OSD is supported by any spare UART
LED: 4 LED independent pads, support WS2812 programming lamp output.
Receiver: Support Sbus, crsf, ibus, SBUS, XBUS receiver,
The default receiver input is UART2(You can solder ELRS RX on UART2).
Power:
Input voltage: 3-6S
BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
LDO 3.3V: Max.1A

FC Firmware:
BetaFlight firmware: DAKEFPVF405
INAV firmware:DAKEFPVF405
Mounting:
Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
External size 36mm × 36mm
Flight controller weight: 6.9g
Flight controller onboard voltage sensor.

BLHeli-S 60A 3-6S DShot600 4-in-1 ESC:

Support Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
Power supply voltage: 3-6S (12-26V)
Continuous working current: 45A/60A
No built-in 5V BEC output
Firmware: BLHeli-S
Screw hole spacing: 30.5*30.5MM
Aperture: 4MM
Weight: 14.6g

Feature:

- The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.
- EMI Shell provides stronger anti-interference capability.

Package Included:

1x F4 F405 Flight Controller

1x BLHeli-S 60A 3-6S DShot600 4-in-1 ESC
