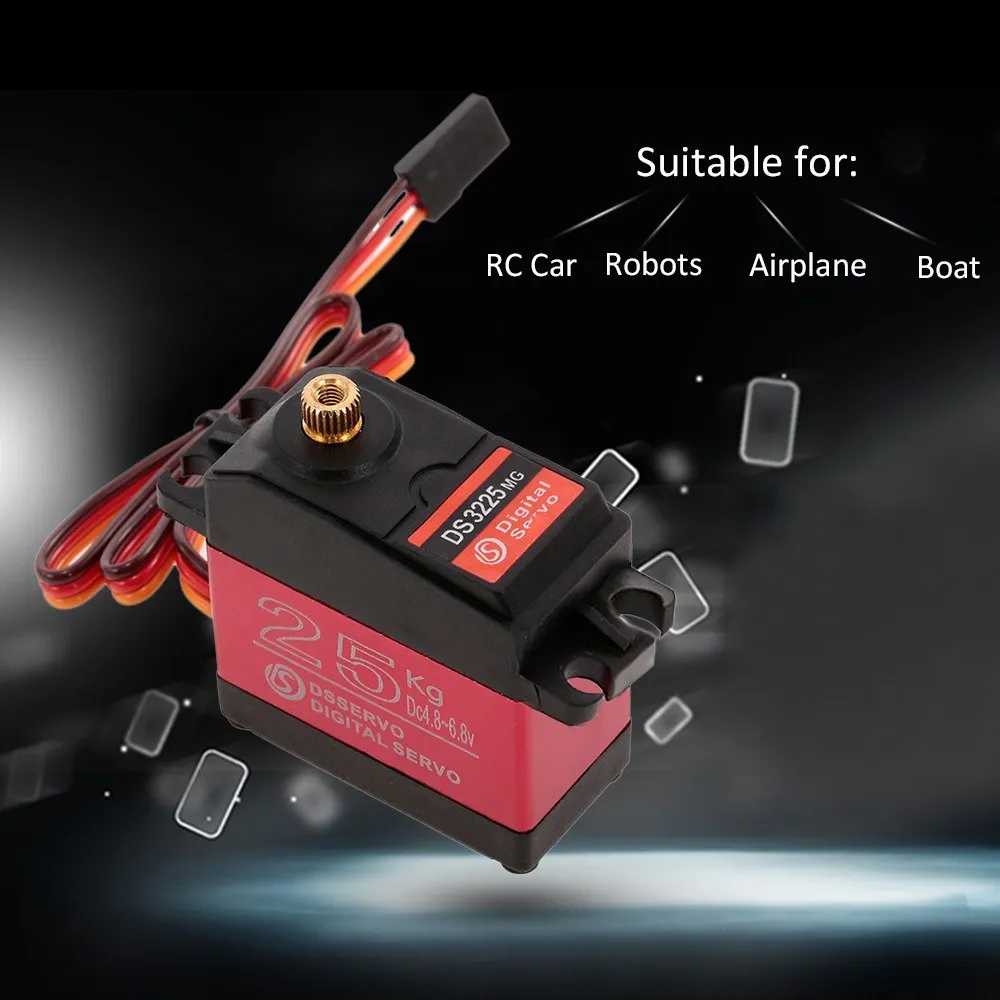

The DSSERVO DS3225 25KG digital servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness. With high quality and performance, it is tailored for RC hobbyist to provide different experience and delight.
Features:
Large torque - maximum torque can up to 25kg.cm (6.8V)
High-precision metal gear with hard anodizing for better accuracy and longer service life
CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well
Water proof rubber seals screws, made of first-grade material ensure the longevity of the products
Good performance digital standard servo, which can be a common use for robots, mechanical arms, climbing cars and remote control toys
Great choice for university professors and students who are interested in developing software for robot parts
Tailored for RC hobbyist to provide different experience and delight
Specifications:
Brand: DSSERVO
Item: DSSERVO DS3225 Digital Servo
Operating voltage: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Dead band: 3μs
Working frequency: 50-333Hz
Connector wire: About 300mm
Gear type: Metal
Motor Type: DC motor
Size: 40 * 20 * 40.5mm
Weight: 67g
Note: There could be some deviations due to manual measurement or slight color difference as the result of shooting scene
Servo appears well built having an aluminium centre casing with plastic end caps.
End caps have seals between them and centre casing to keep dirt out and a seal around the servo lead exit however there is no seal between the top casing and output shaft so dirt and moisture can get in.
Top casing was removed to check gears and they are all metal as described and look well manufactured, the only issue I could see was there was no grease in the output shaft bearing.
I have used some light silicone grease to lubricate the ball race and also put some around the output shaft to help stop dirt and moisture getting into the servo.
The included metal servo arm is good quality and of the double bolt clamp design which is very good.
Servo movement is 85° on standard settings (1000µs - 2000µs) so I think that you may be hard pushed to get 180° movement out of this servo.
I do not have an accurate test rig but I was seeing in excess 20kg/cm on my setup which is more than enough for my needs.
These appear to be very well built servos that should work well in service and taking into consideration the price they are excellent.
Servos were ordered, dispatched and received in 8 days from China to UK so excellent service all around.
