1. The package only contains the frame, not the whole machine, nor is it ready to fly, and is not equipped with any electronic accessories.
2. You need to prepare all the electronic accessories, screwdrivers and other accessories and assembly tools yourself. Only the frame and the screws and aluminum columns for assembling the frame are shipped. Screws for other electronic accessories (such as flight control/flying tower/electronic speed controller/motor/camera, etc.) are not provided.
3. Carbon fiber materials and metal accessories such as screws will conduct electricity, so please insulate them during installation and use.
Specifications:
|
Item Name |
Apexevo 13-inch |
Apexevo 15-inch |
|
Wheelbase |
564mm |
662mm |
|
Appearance size |
407mm*512mm*50mm |
493mm*593mm*50mm |
|
Weight |
About 567g |
About 620g |
|
Structure |
X Structure |
|
|
Thickness |
Bottom plate 3.0mm, upper plate 2.0mm, splint 3.0mm, arm 8.0mm, reinforcing rod 4.0mm |
|
|
Camera side panel |
3D printed TPU |
|
|
Aluminum column specifications |
M3*28mm aluminum column |
|
|
Applicable propeller size |
13 Inch |
15 Inch |
|
Flight control hole spacing |
20*20mm(M3),30.5*30.5mm(M3) |
|
|
Tail image transmission installation hole spacing |
20*20mm(M2),25.5*25.5mm(M2),30.5*30.5mm(M3) |
|
|
Camera installation width |
20mm/19mm |
|
|

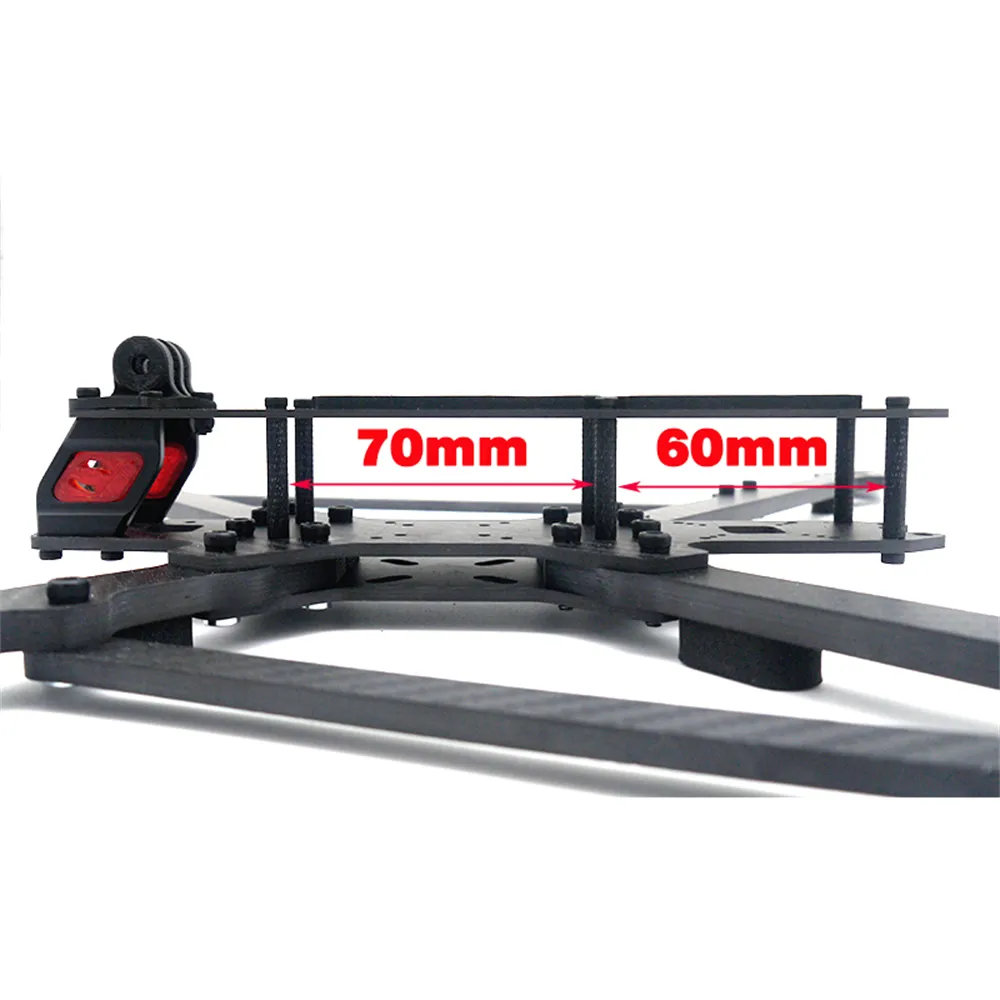

Internal height |
About 28mm |
|
|
Motor installation hole spacing |
25*25mm(M3),30mm*30mm(M4) |
|
|
Applicable image transmission |
DJI 03 Air Unit/VISTA Sky Unit/DJI Sky Unit/Analog Image Transmission, etc. |
|
|
Sheet material |
3K (T700 level) |
|
|
Applicable GPS |
BZ251 |
|
|
Printed material and color |
3D printed tpu material, black |
|
Feature:
1. Robust Build: Made with high-quality 3K carbon fiber, ensuring lightweight and optimal strength for enhanced performance.
2. Versatile Configuration: Features two head assembly methods, offering flexible installation options to suit different operational needs.
3. Precise Fit: Tailored for DJI O3 Air Unit/VISTA and other compatible modules, providing an easy and secure attachment for various drone applications.
4. Optimized Mounting: Equipped with multiple mounting holes, it supports 20x20mm, 25.5x25.5mm, and 30.5x30.5mm formats for versatile accessory integration.
5. Smart Design: Innovative frame structure with 3D printed TPU parts enhances stability, while maintaining a sleek and aerodynamic profile.
