Specifications:

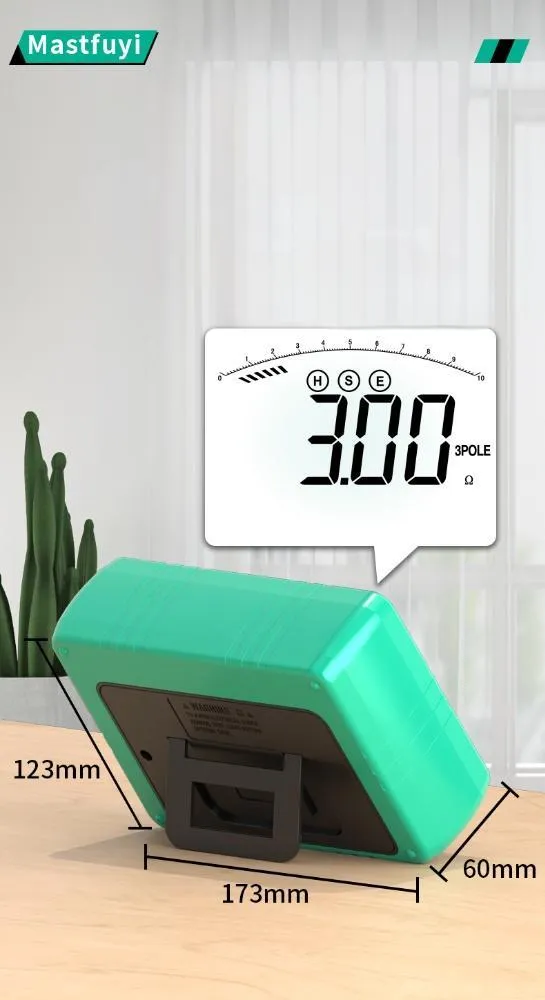

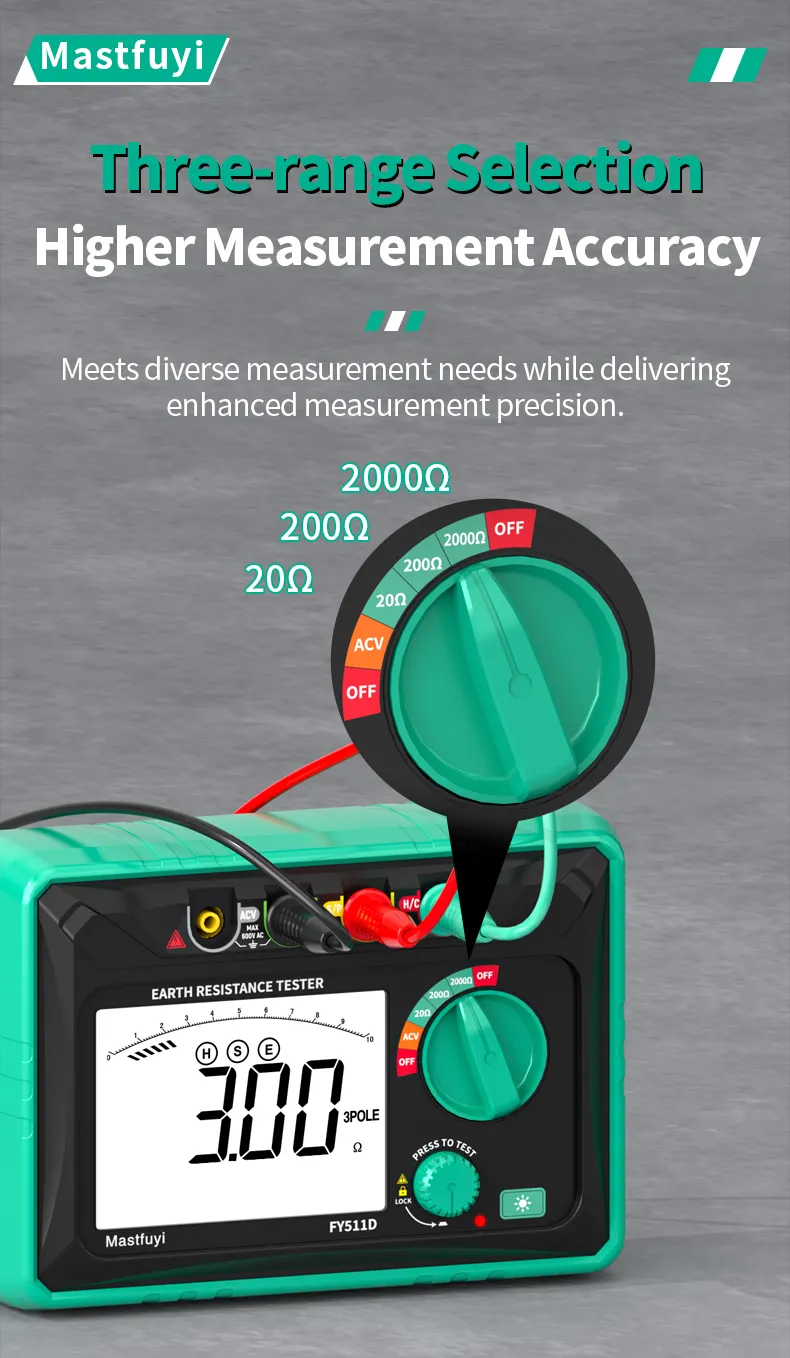

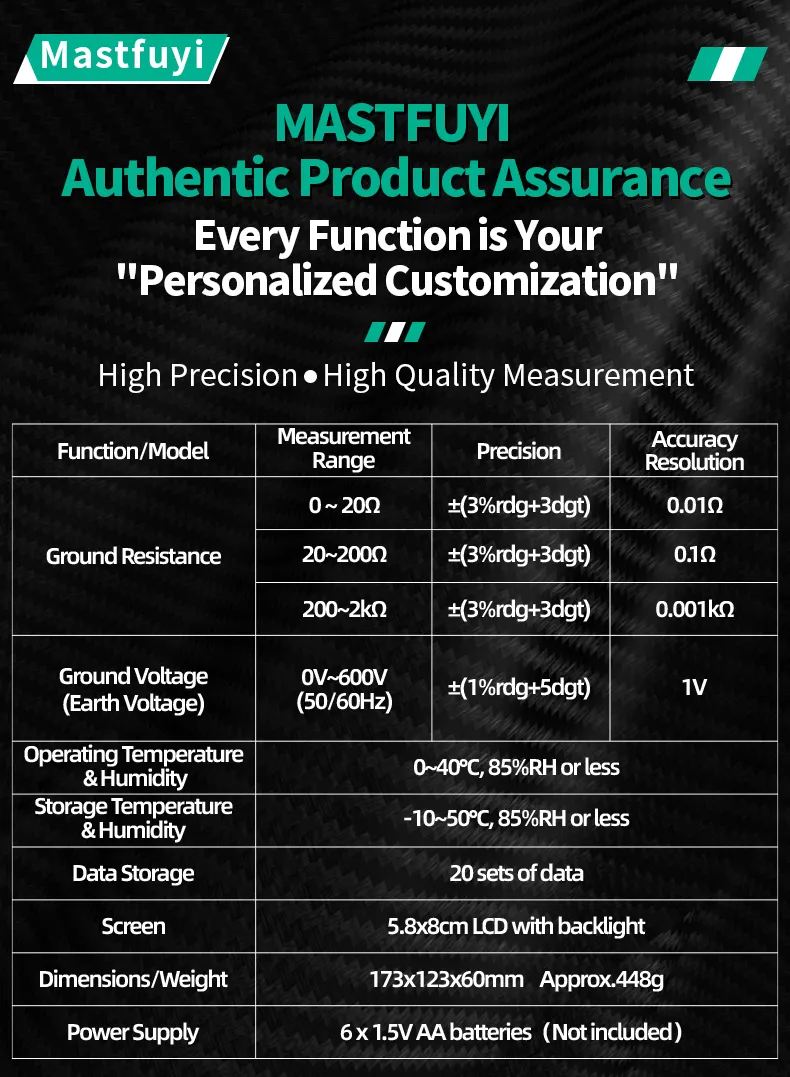

Model: FY511D Measurement Range: 0~20Ω (0.01Ω resolution), 20~200Ω (0.1Ω resolution), 200~2kΩ (0.001kΩ resolution) Earth Voltage Range: 0~600V AC (50/60Hz) (1V resolution) Operating Temperature & Humidity: 0~40°C, ≤85%RH Storage Temperature & Humidity: -10~50°C, ≤85%RH Display Screen: 5.8 x 8 cm LCD with backlight Data Storage: 20 measurement sets Dimensions: 173 x 123 x 60 mm Weight: Approx. 448g Power Supply: 6 x 1.5V AA batteries (not included)
Features:

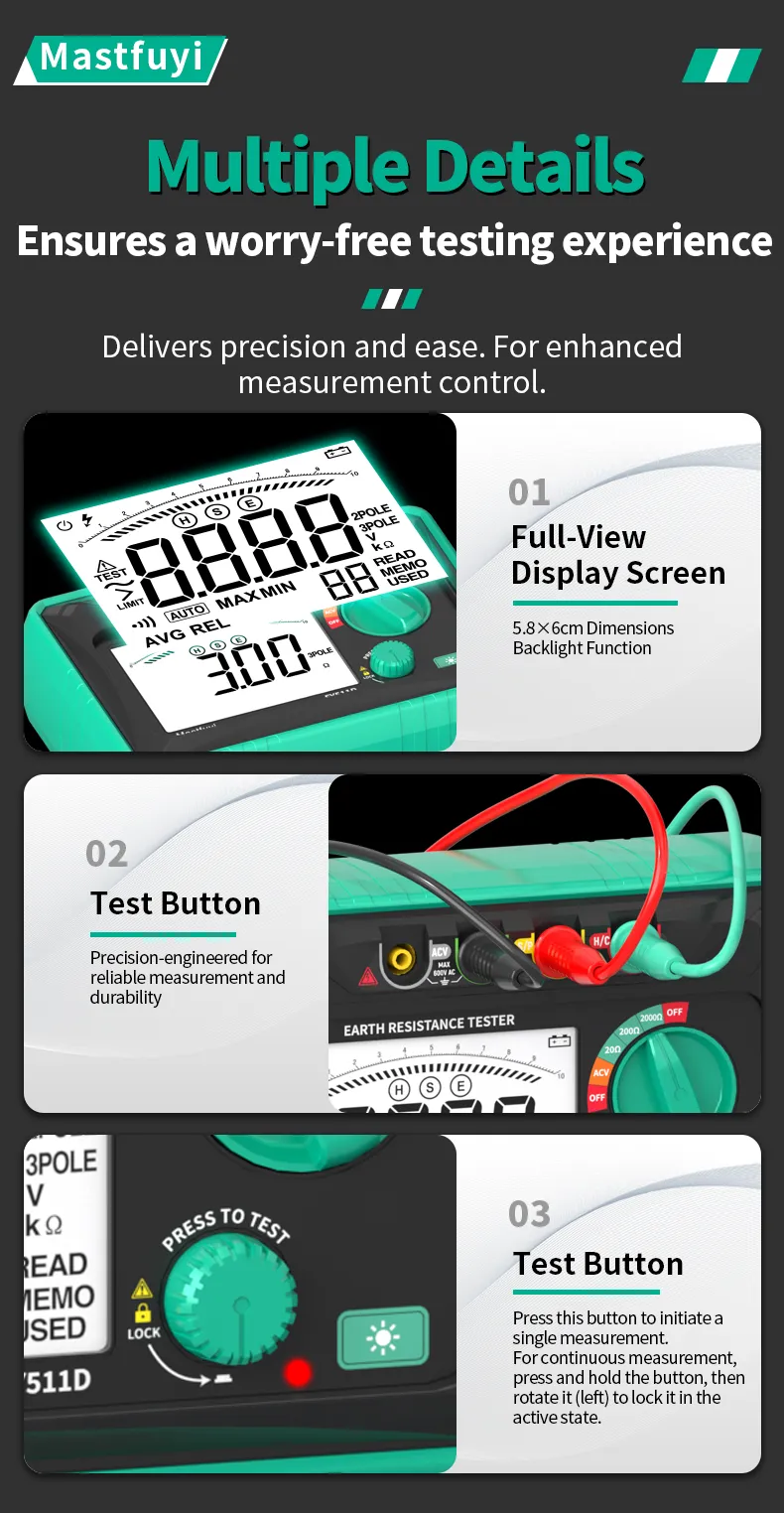

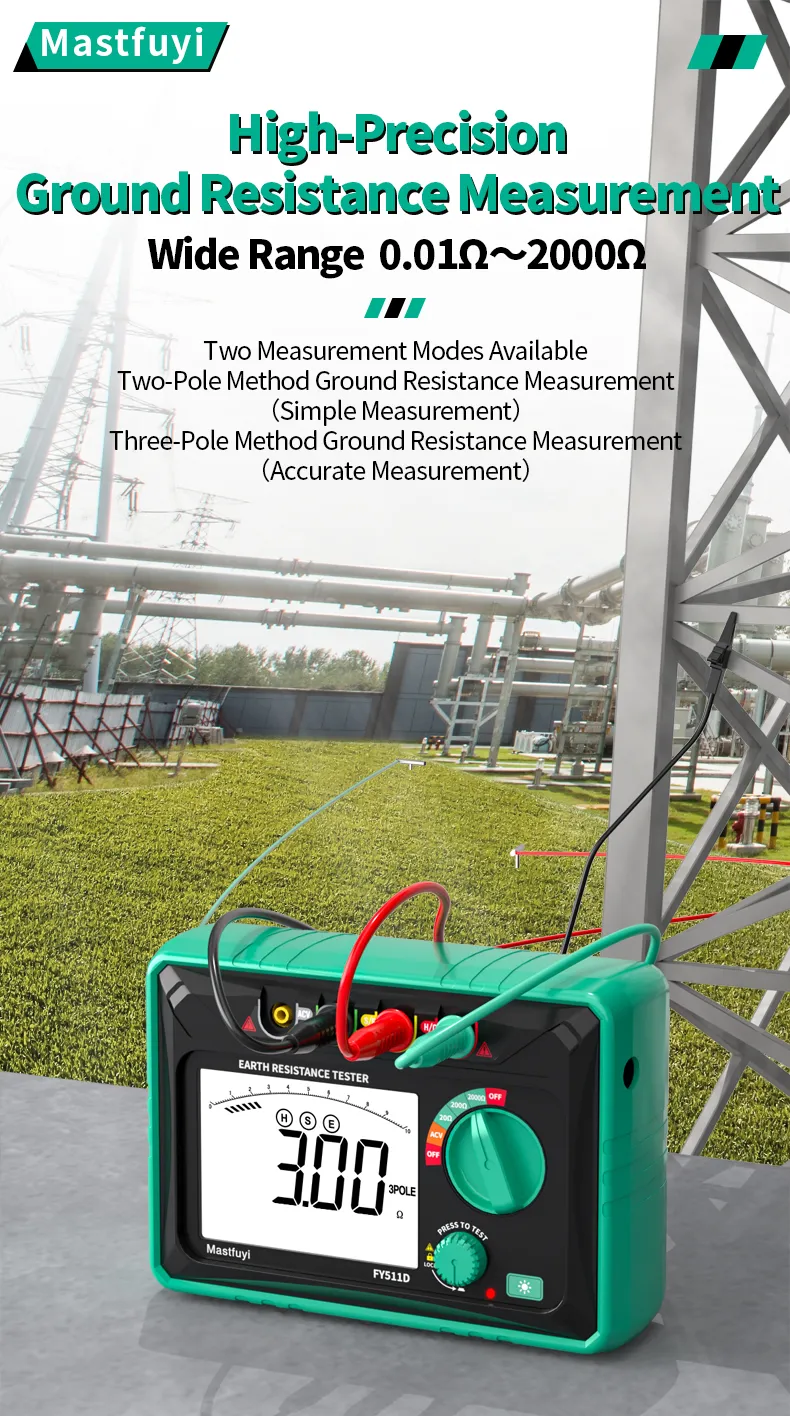

1.High Measurement Precision Built for precise readings, the FY511D is equipped with a reliable 0.01Ω resolution and accuracy range of ±(3%rdg+3dgt), making it capable of pinpointing ground resistance and earth voltage with enhanced accuracy. 2.Enhanced Data Storage The device supports storage for up to 20 sets of measurement data, allowing for quick reference and saving time when performing multiple tests in various conditions. 3.User-Friendly LCD Design The 5.8 x 8 cm LCD screen is backlit for efficient readability in both dark and bright environments, ensuring smooth usage in outdoor and indoor scenarios. 4.Compact and Lightweight Build Weighing only 448g with a portable design, the FY511D is easy to carry and handle, particularly for fieldwork and long-duration testing sessions. 5.Wide Voltage and Resistance Range Supporting ground resistance measurement from 0~2kΩ and earth voltage up to 600V AC, this device covers a versatile range of applications for residential, commercial, or industrial systems.
Package Included:

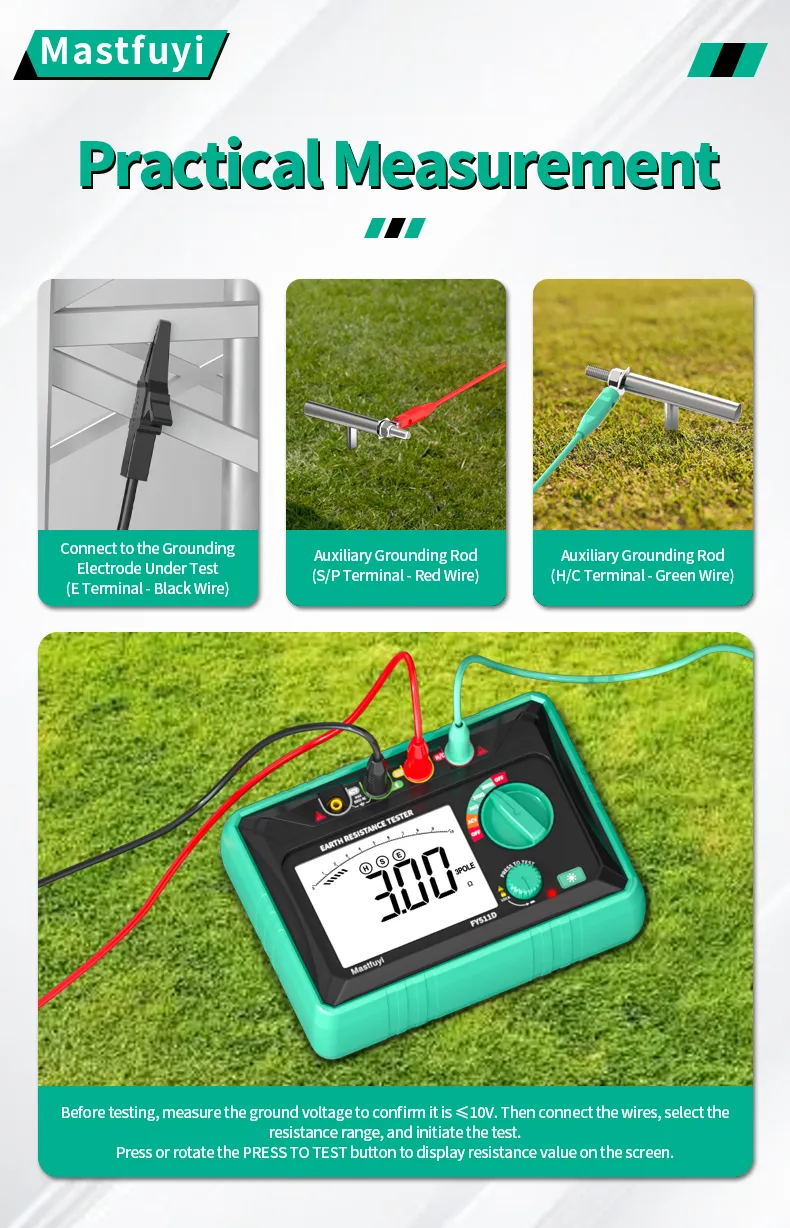

1 x Earth Resistance Tester (FY511D) 1 x Carrying Case 3 x Test Leads (Red: 20m, Green: 10m, Black: 5m) 2 x Contact Voltage Test Probe 2 x Grounding Rods 1 x Testing Clips 1 x User Manual Note: Battery is not included.
