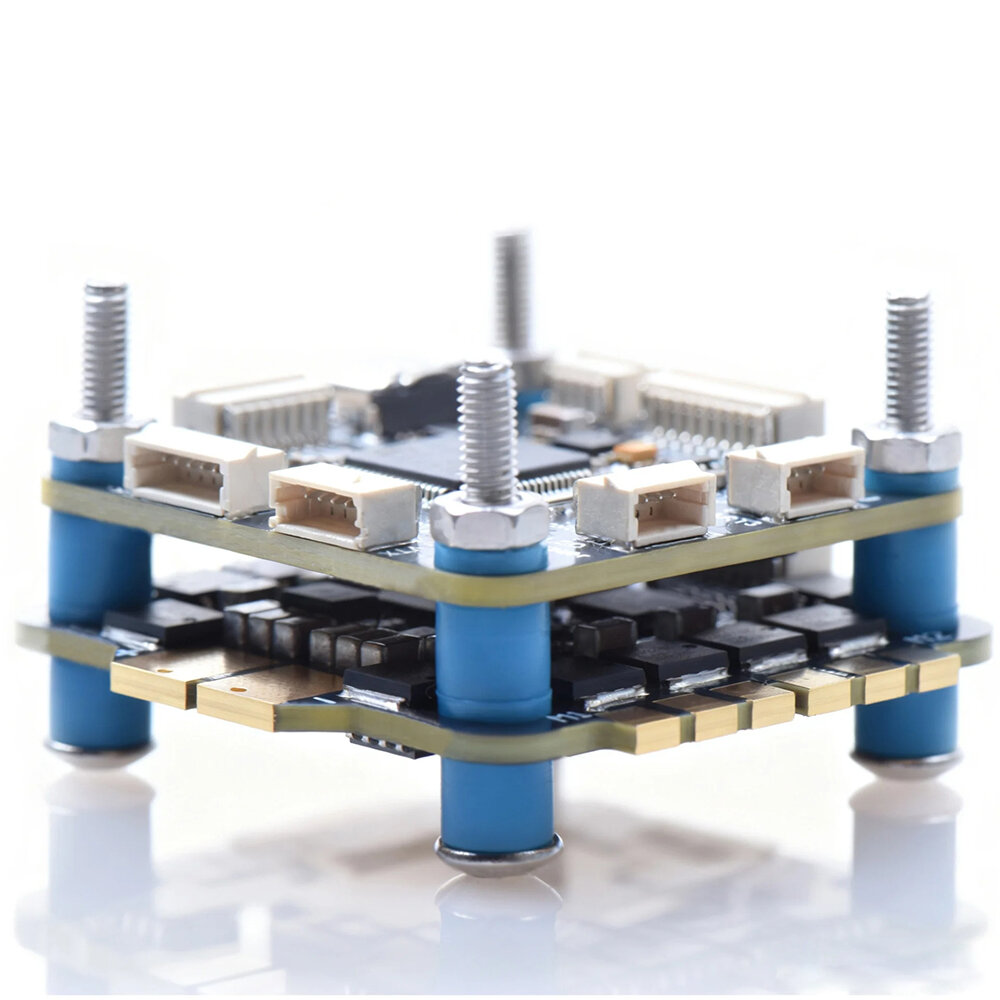

30.5x30.5mm JHEMCU F405 Flight Controller 8S AM32 80A 32-bit ESC Stack Support GPS WS2812 Programmable LED for RC FPV Racing Drones

  • gift Roymall C.o.
  • amazon
  • $78.84 /$158.59
    4.2270
    Shipping to: United States
    Express: 7-12 business days
    Standard: 15-25 business days
    $129.99 /$158.59
    • *Name:

    • *Email:

    • *Phone:

    • *Quantity:

    • *Content:

    • Attachment:

      Supports JPG, JPEG, PNG, PDF, EXCEL, WORD, RAR, ZIP, 7z formats

    Guaranteed Safe Checkout

    Free Gift
    Free gift with any purchase
    Shipping Policy
    Free standard shipping on orders over $9.9
    Return Policy
    Return items will be accepted within 40 days when is the date of receiving the goods. Customized items cannot be returned or exchanged. Items bought with an e-gift card are exchangeable only; refunds are not applicable.

    Free Gift

    Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.

    Shipping Policy

    We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.

    1. Return & Exchange Policy

    We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.
    We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296

    2.Refund Policy

    You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296

    Specification:

    Brand: JHEMCU

    Model: F405 Flight Controller 8S AM32 80A 32-bit ESC Stack

    Model

    Parameter

    F405 Flight Controller

    MCU: STM32F405RGT6

    Power Supply: 3-8S (11V-35V)

    Signal Protocols: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

    Sensor: ICM-42688-P

    Size: 36x36mm (30.5mm mounting hole, diameter 4mm)

    Firmware Version: Betaflight JHEF405PRO.HEX

    Supports INAV, can flash JHEMCUF405.HEX

    Black Box: 16MB

    Barometer: Yes

    OSD: Supported

    DJI VTX: Reserved port, supported

    USB: TYPE-C Port

    IIC: Supported

    GPS: Supported

    Electronic Compass: Supported

    UART: Four (UART1, 3, 4, 6)

    BEC: BEC 5V/3A and 10V/2A

    Receiver: SBUS, IBUS, DSM2/X, TBS (CRSF), ELRS (CRSF)

    BF firmware only supports CRSF. Other protocols require firmware updates.

    Supports WS2812 programmable LED

    Supports Buzzer

    Built-in Voltage Sensor: Current testing port included

    Weight: 9.1g

    80A 32-bit ESC

    Input Voltage: 3-8S (11-35V)

    Continuous Current: 80A x 4 channels

    BEC: None

    Amperemeter: Supported

    Mounting: Hole spacing 30.5MM / M4

    Dimensions: 44x43MM

    Firmware: AM32_AT32DEV_F421_2.08.HEX

    ESC Weight: 15.3g

    Package included:

    1 x F405 Flight Controller

    1 x 80A 32-bit ESC




    Description

    30.5x30.5mm JHEMCU F405 Flight Controller 8S AM32 80A 32-bit ESC Stack Support GPS WS2812 Programmable LED for RC FPV Racing Drones
