30A 12V 24V DC Motor Controller Relay Board Forward Reverse Control Limit Start Stop Switch for Garage Door Crane Elevator

30A 12V 24V DC Motor Controller Relay Board Forward Reverse Control Limit Start Stop Switch for Garage Door Crane Elevator

Roymall C.o.

$3.50 /$9.75

4.21390

Shipping to: United States

Express: 7-12 business days

Standard: 15-25 business days

location

Add to Cart Buy Now

$7.99 /$9.75

Coupon Code

Direct purchase from the factory

*Name:
*Email:
*Phone:
*Quantity:
*Content:
Attachment:

Supports JPG, JPEG, PNG, PDF, EXCEL, WORD, RAR, ZIP, 7z formats

Credit or Debit Card

Guaranteed Safe Checkout

Free Gift

Free gift with any purchase

Shipping Policy

Free standard shipping on orders over $9.9

Return Policy

Return items will be accepted within 40 days when is the date of receiving the goods. Customized items cannot be returned or exchanged. Items bought with an e-gift card are exchangeable only; refunds are not applicable.

Free Gift

Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.

Shipping Policy

We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.

1. Return & Exchange Policy

We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.
We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296

2.Refund Policy

You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296

Videos for similar product

Loading product videos...

❮

❯

Products related to this item

Loading related products...

❮

❯

>>>Manual: Click here to open<<<

Product parameters:

1. Working voltage: DC 12V (12V version) or 24V (24V version) (DC power supply power ≥ motor load x3)

2. Applicable motor: brushed DC motor

3. Maximum load current: 15A(Relay maximum load 30A);

4. Signal input: active low (NPN)

5. Working modes: 9 optional modes, including momentary, self-locking, etc.

6. Working current (excluding motor): Quiescent Current: 5MA, Forward or Reverse working current: 70MA

7. Size: 89*62*22mm

8. Weight: 86 grams

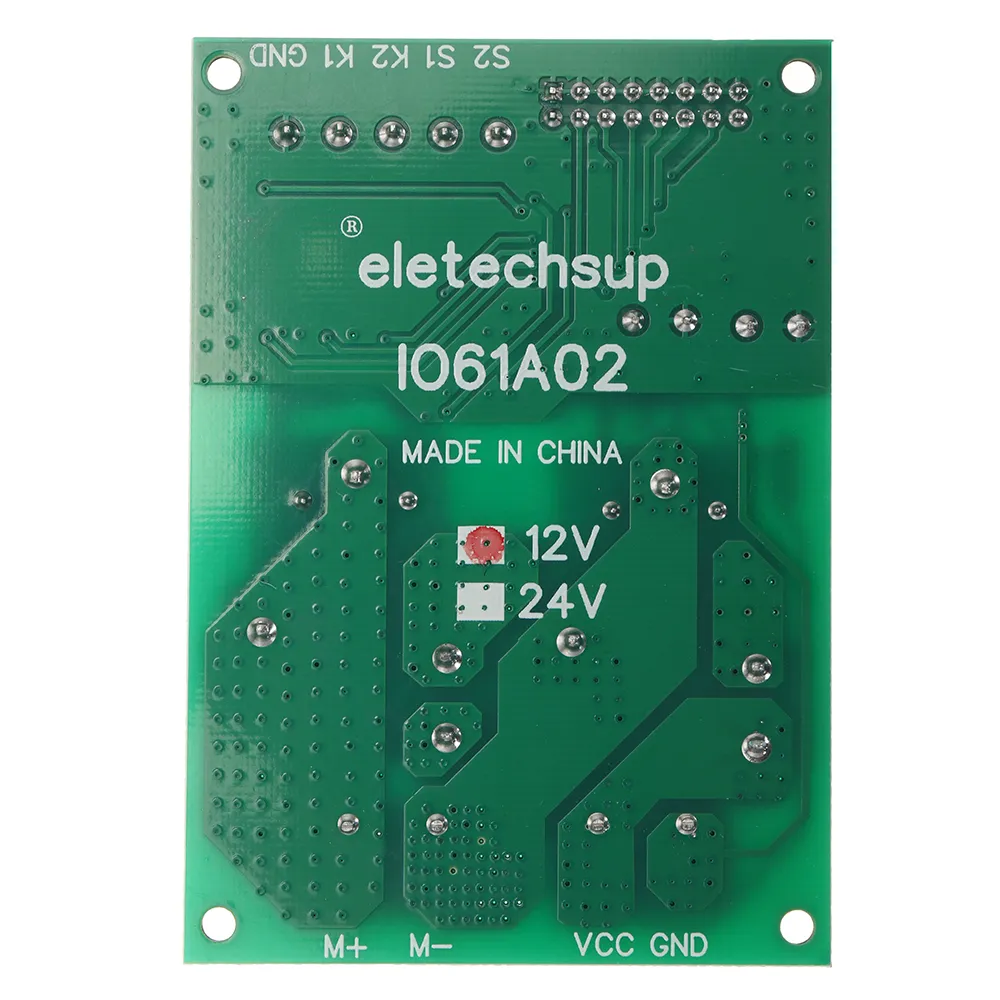

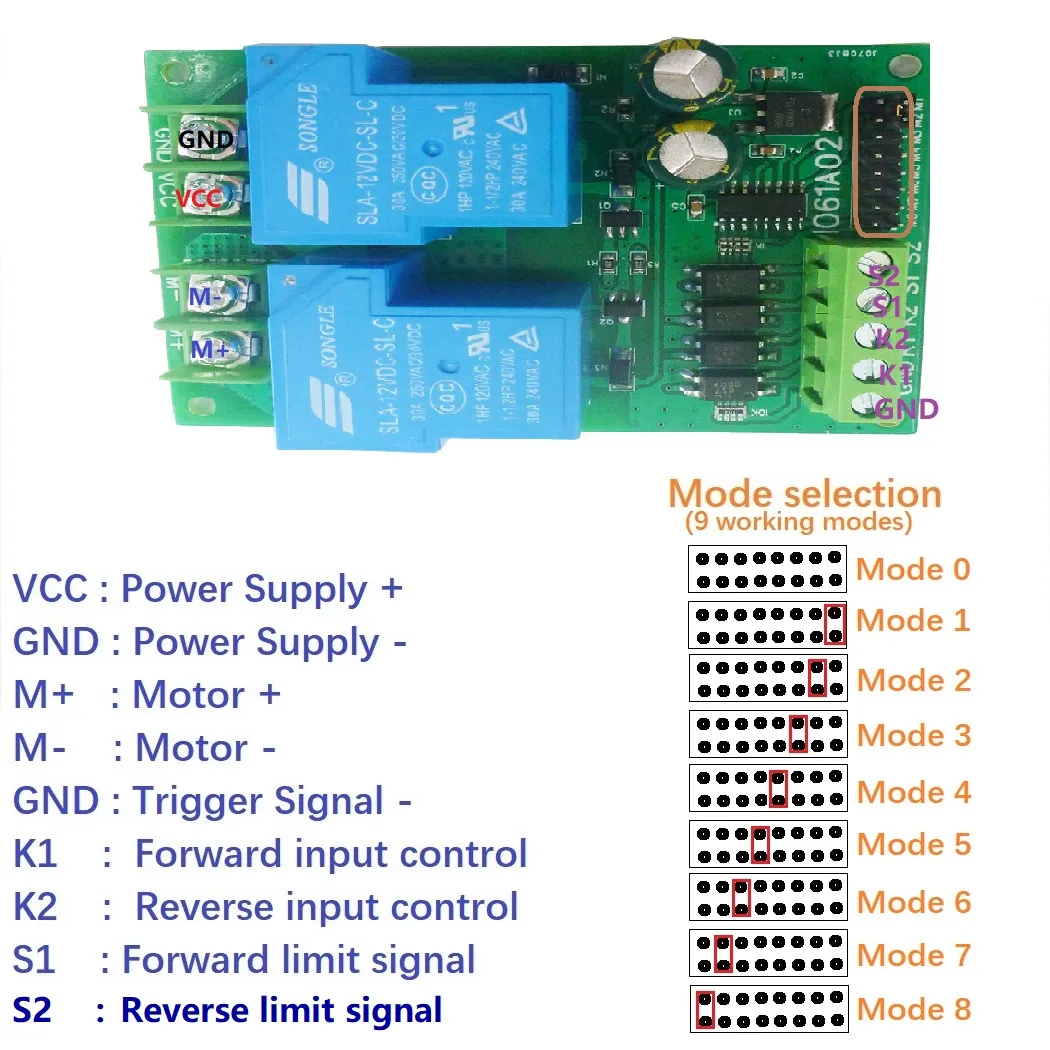

Pin Description:

VCC : Power Supply +

GND : Power Supply -

M+ : Motor +

M- : Motor -

GND : Trigger Signal -

K1 : Forward input control

K2 : Reverse input control

S1 : Forward limit signal

S2 : Reverse limit signal

Reviews(5)

5.00

BG535355751

5.0

noch nicht ausprobiert ich kann keine Bewertung abgeben so
Raimundas

5.0

Very Nice!

See All Reviews

Questions & Answers(1)

Q: how do I get the manual

1 answers

Description

Product Included:

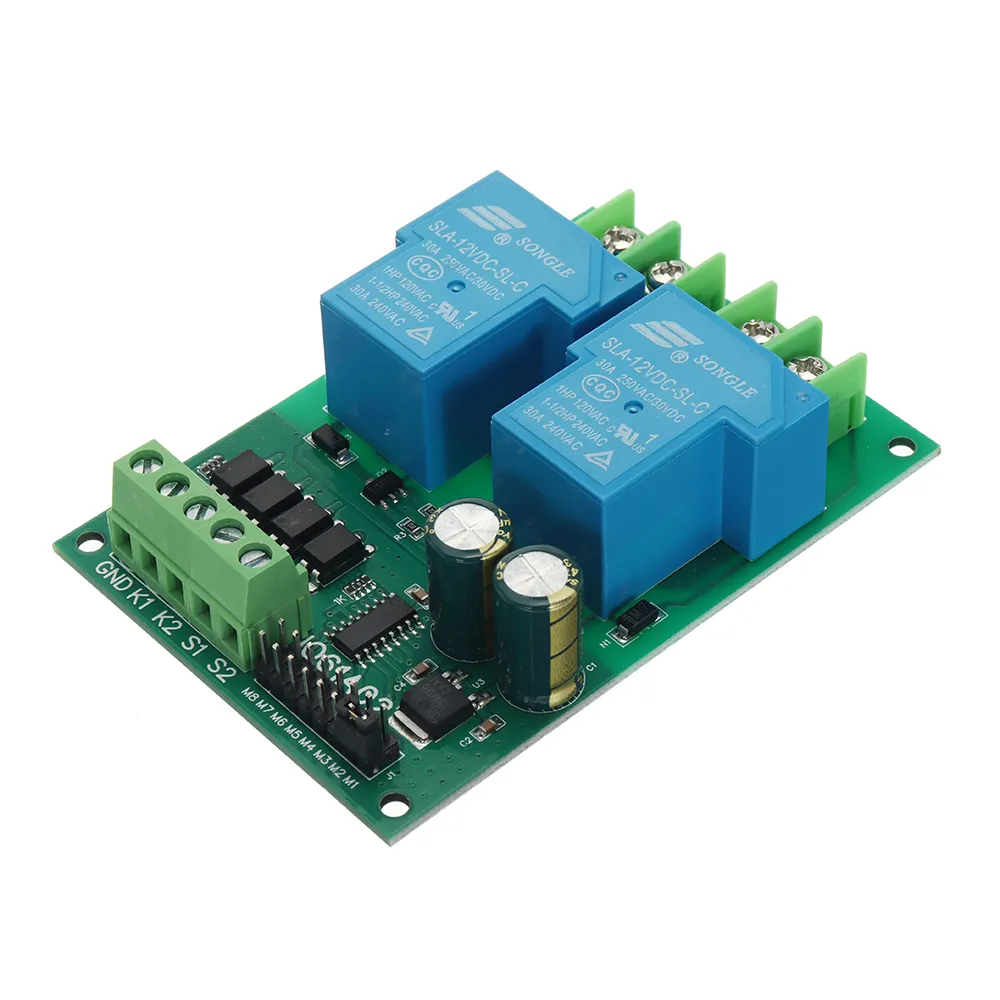

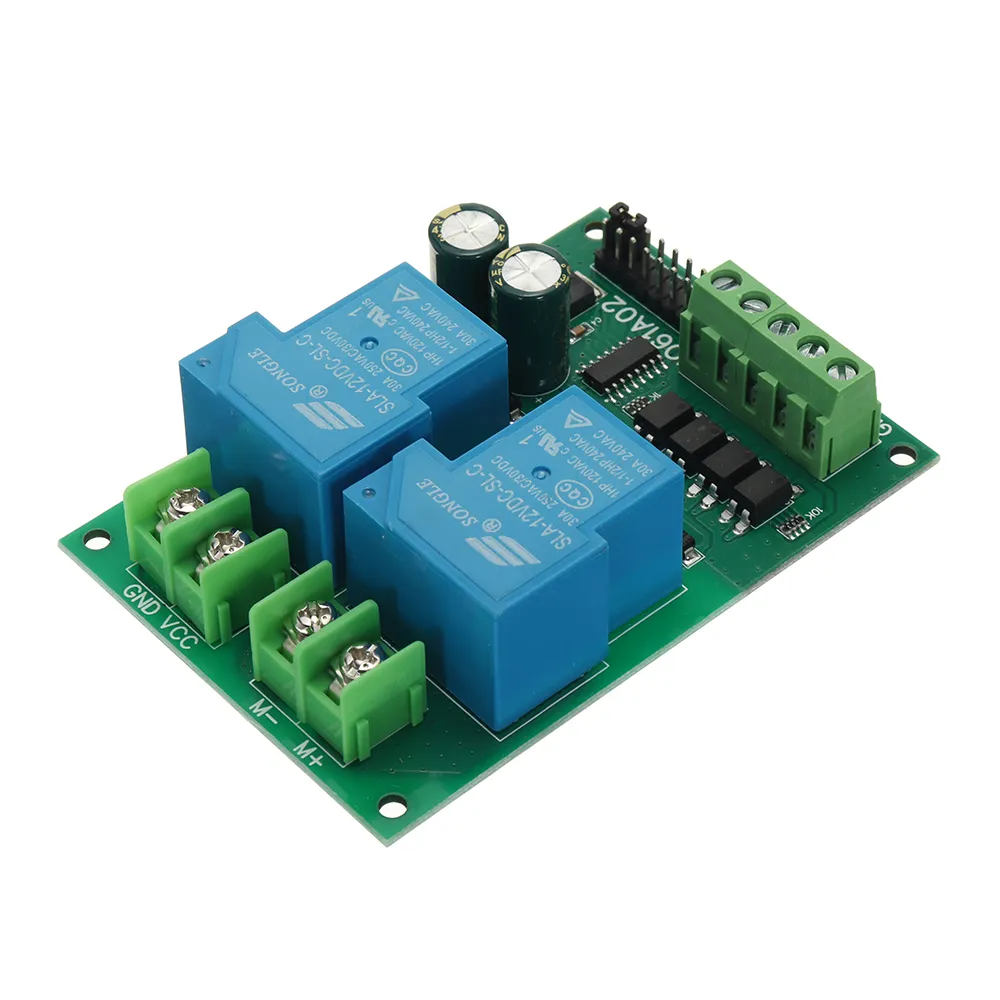

1 x 30A Relay DC 12V 24V motor forward and reverse controller

Wiring Diagram 1: Two position (switch) reciprocating

(moving backward and forward in a straight line.)

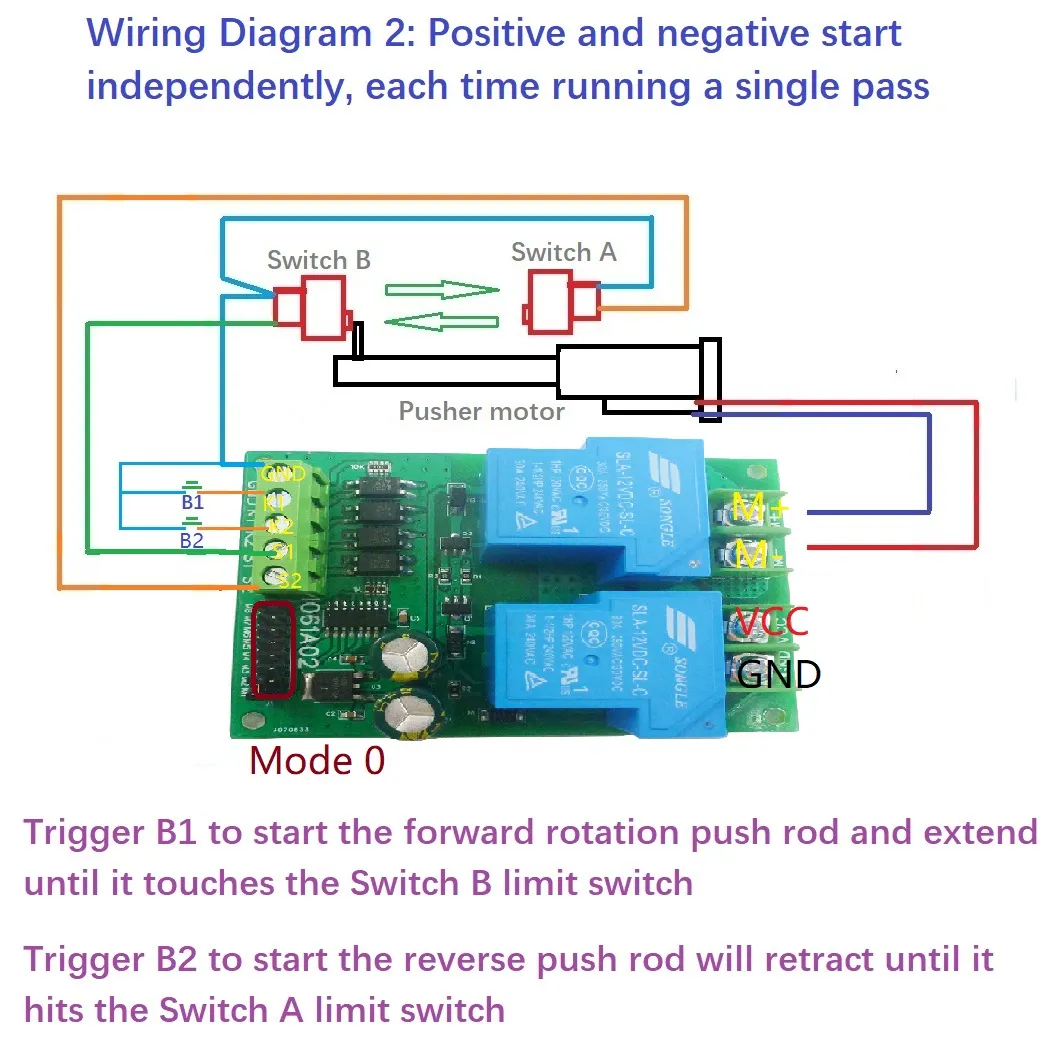

Wiring Diagram 2: Positive and negative start independently, each time running a single pass

Wiring Diagram 3: Every time you start, run a forward and reverse rotation

This module has 4 signal input terminals, namely ""K1"", ""K2"", ""S1"", ""S2"", K1 is the forward rotation signal input terminal, K2 is the reverse rotation signal input terminal, and S2 is the forward rotation limit signal Input terminal, S2 is the reverse limit signal input terminal. The signal input source can be selected from micro switch, induction, infrared, metal, remote control and other modules, and can also be controlled by a single-chip microcomputer.
