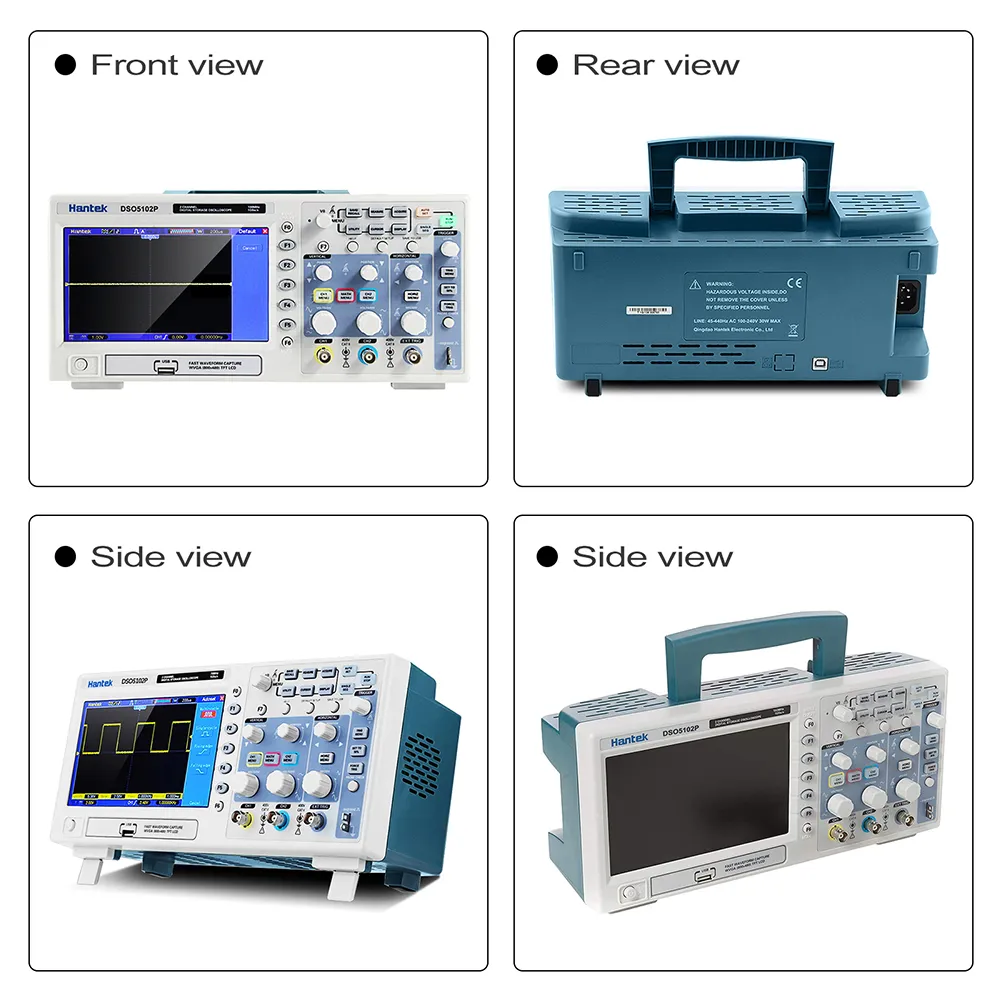

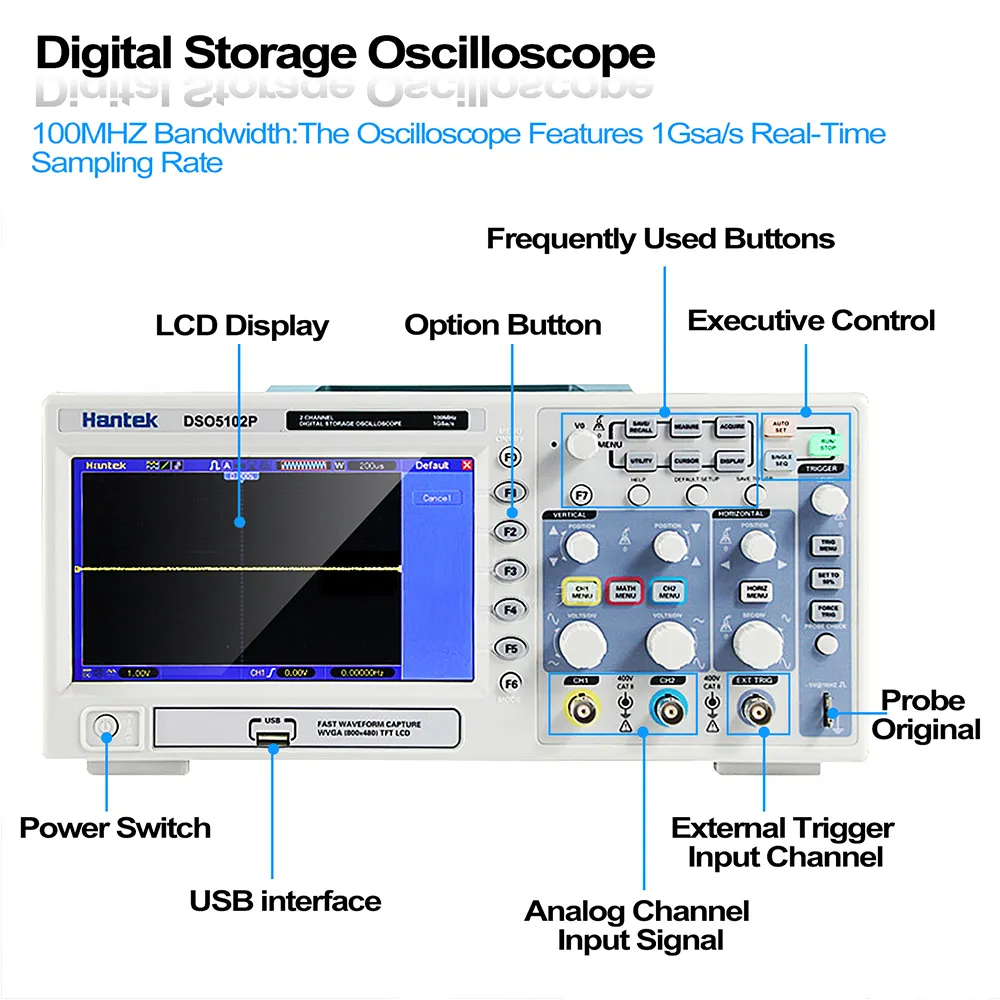

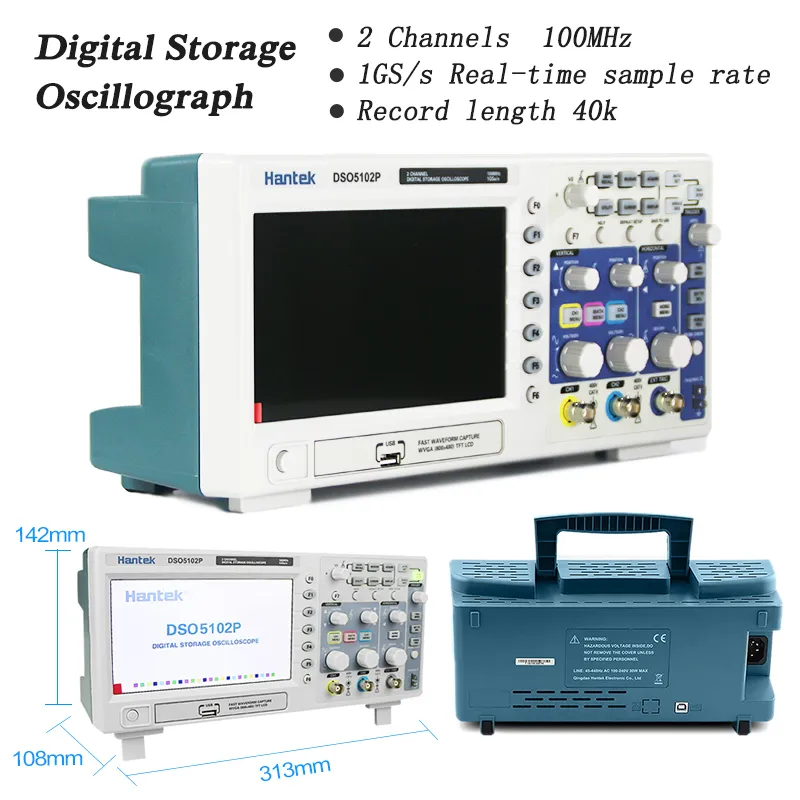

Feature:

• 200/100/70MHz bandwidths

• 1GSa/s Real Time sample rate

• Large (7.0-inch) color display, WVGA(800x480)

• Record length up to 40K

• Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.

• USB host and device connectivity, standard

• Multiple automatic measurements

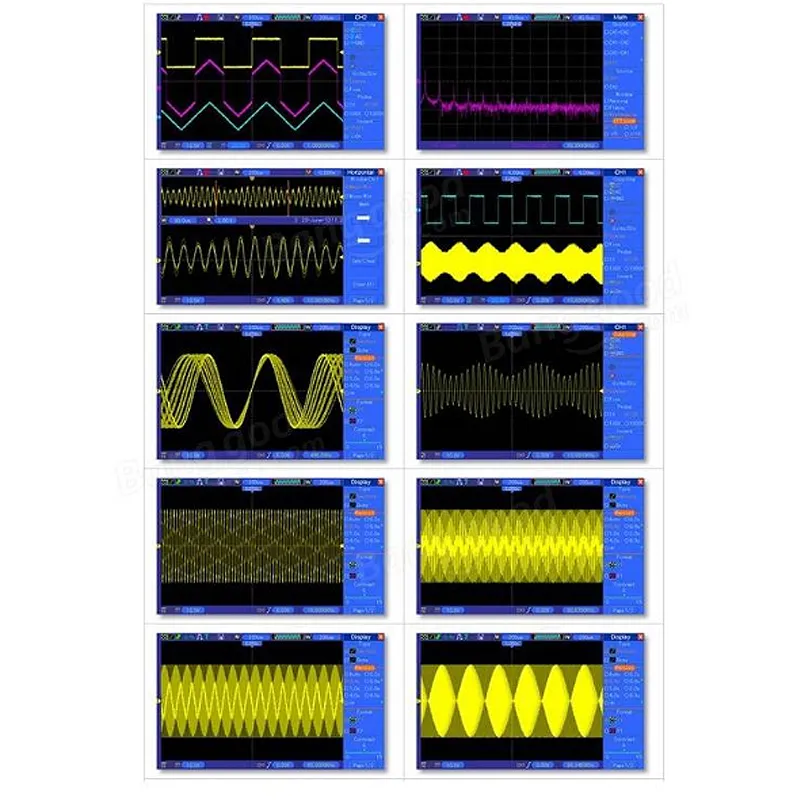

• Four math functions, including FFTs standard

• Provides software for PC real-time analysis

•

  Reviews(472)

  5.00

  Image 1 Positive 2

  •
    FPVman
    5.0
    Very happy with the Hantek scope. Robust case, good size for the lab bench and looks good, even better than the photo's on the web site. Very easy to use without reference to the manual. All information is displayed on screen with an easy to use menu system on the right hand side of the screen that auto changes depending on what function is selected. Nice feature.

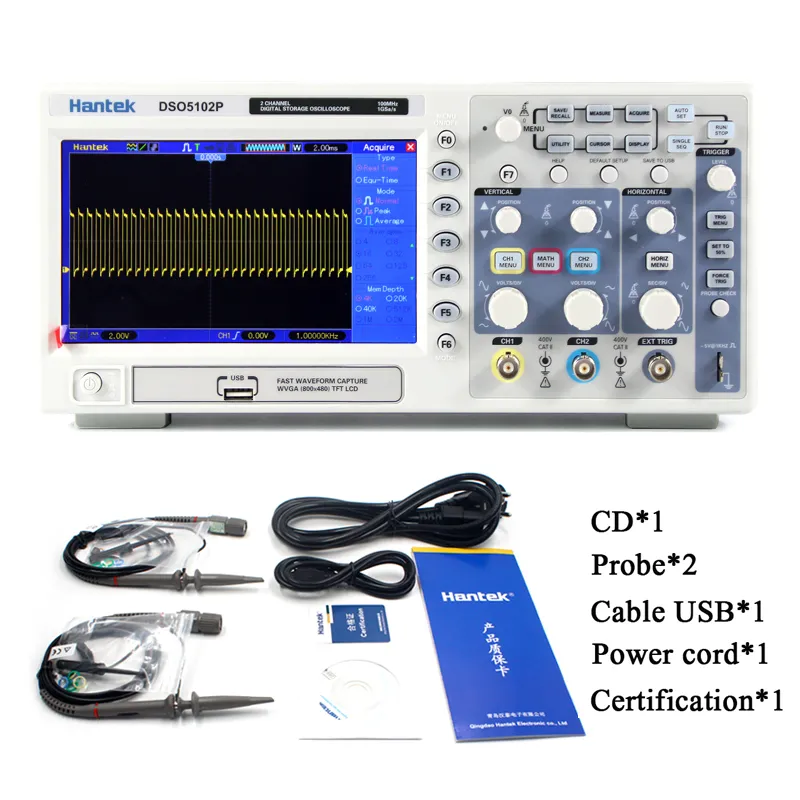

    Two good probes provided with x1 and x10 switch on each. Hook up a probe to the front panel test post and have a play - easy way to see all the different functions. Display is easy to use, very readable and with colour it is easy on the eye. Smooth controls, with ultra fine and coarse adjustment. Accuracy is within spec. A great buy for anybody interested in electronics. Thanks Banggood!
  •
    BG482336410
    4.0
    Por incrível que pareça o produto depois que chegou ao Brasil foi entregue em menos de 15 dias. O que demorou mesmo foi o envio do produto da China para o Brasil, foi quase 1 mês para enviarem o Osciloscópio. Uma sugestão ao vendedor é que reforce a embalagem do produto mesmo que isso acrescente um custo ao cliente, pois a minha encomenda chegou com a caixa toda destruída e molhada. Liguei o equipamento e fiz as configurações iniciais. Até agora ele não apresentou nenhum defeito. Espero que continue assim, funcionando normalmente porque do jeito que o Osciloscópio chegou o meu maior medo era abrir a caixa e ver o equipamento todo quebrado ou o equipamento nem funcionar ao ligá-lo.
    •
    •
    •
    •
    •
    •
    •
    •

  See All Reviews

  Questions & Answers(87)

  Q: What kind of power plug will be provided? I am from US, so I will need a plug that can be used in the power outlets here (3 pin, 110V).

  3 answers

  Q: What is the operating power needed for this - is it EU ~240v or US 120v?

  3 answers

  Description





















  Detail More+ ▼

  You also Interesting

  Tools Measurement & Analysis Instruments Digital Multimeters & Oscilloscope Oscilloscopes





  MSO5354 Mixed Signal Oscilloscope 350 MHz Analog Bandwidth 8 GSa/s Real-Time Sample Rate 200 Mpts Memory Depth High-Speed Waveform Capture

  4.4

  $3574.99 $12075.56

  1507





  SainSmart Micsig MHO3-2504 Digital Storage Oscilloscope 12-bit ADC 250MHz Bandwidth 3GSa/s Sampling Rate 14-inch Touch Screen High Resolution 4 Channels Low Noise USB Connectivity

  4.2

  $2470.99 $8001.98

  1818





  Micsig MOIP01P/MOIP02P SigOFIT Optical Isolation Probe 100MHz/200MHz Superior CMRR High Voltage Capabilities Accurate Readings for Inverter Power Converter Designs High Bandwidth Safety Test

  4.5

  $2304.99 $12198.78

  3116





  Micsig MDO2504 MDO3504 MDO5004 Digital Oscilloscope 4 Channel 250MHz 350MHz 500MHz Full Touch Screen High-Precision Signal Test Lab Oscilloscope Accurate Waveform Analysis

  4.4

  $1854.99 $4878.78

  2008





  ETO3504 ETO5004 Digital Oscilloscope 500MHz Bandwidth 4 Channels 3GSa/s High Sampling Rate Large Memory Depth USB Type-C HDM Fast Waveform Capture

  4.5

  $1824.99 $8538.78

  1723





  MSO5104 Mixed Signal Oscilloscope 100 MHz Bandwidth 4 Analog Channels 16 Digital Channels 8 GSa/s Sample Rate 200 Mpts Memory Depth High Speed Signal Capture

  4.3

  $1774.00 $2194.78

  1298





  MSO5074 Mixed Signal Oscilloscope 70 MHz 4 Channels 16 Digital Channels Upgradable Bandwidth 8 GSa/s Sample Rate High Waveform Capture Rate UltraVision II Architecture

  4.3

  $1404.99 $2073.99

  2400





  DG922 Pro Function Arbitrary Waveform Generator with 200MHz Max Output 1.25Gsa/s Sampling Rate 16bit Resolution Low Jitter 7\ Touch Screen Compact Portable Design for Field Testing

  4.5

  $1184.99 $7318.78

  4752





  Micsig CP3008 CP3005 CP1510 Current Probe DC 5MHz to 10MHz High Accuracy Universal BNC Interface Low Noise Fast Rise Time Maximum Conductor Diameter 20mm

  4.1

  $1089.99 $3658.78

  375





  Micsig CP503B Oscilloscope high Frequency Current Probe Automotive Tester BNC High Frequency AC/DC Current Probe 50MHz

  4.8

  $939.99 $1171.19

  3027





  DHO914S Digital Oscilloscope 125MHz Frequency Band 4 Analog Channels 12-bit Vertical Resolution 1.25 GSa/s Sample Rate with Built-in Signal Generator and Advanced Display Features

  4.7

  $654.99 $853.99

  3423





  OWON LCR2000 Series LCR Meter with Consecutive Test Frequency up to 100kHz or 20kHz 0.05% Basic Accuracy Fast Measurement Speed Advanced Interface Options Versatile Usage

  4.4

  $637.99 $927.19

  2202





  Micsig TO1004 TO2004 Tablet Digital Oscilloscope 4 Channel 100MHz 200MHz 10 inch Touchscreen High Sampling Rate Deep 220Mpts Memory Depth

  4.8

  $624.99 $1218.78

  1668





  DS1054Z Oscilloscope Digital 4 Channels 50MHz Bandwidth 1GS/s 7inch WVGA 12Mpts 30,000wfm Oscilloscope

  3.9

  $613.99 $1096.78

  2528





  Micsig RCP60XS/RCP300XS/RCP600XS/RCP1200XS/RCP3000XS/RCP6000XS Oscilloscope Probes Rogowski Current Probe 2Hz-30MHz Up to 6000Apk High Accuracy 2%

  4.6

  $599.99 $1218.78

  1955

  ×

  Währung wielen

  Sprooch wielen

  JOIN US

  Fir déi neiste Marken News a 15% Rabatt fir Är éischt Bestellung.

  Abonnéieren

  ©2024 Roymall Personnaliséiert Interessant















  Mäi Panier Panier (5084)

  Meng Favoriten Favoriten (0)

  ×



  Roymall Service

  Hi ?
  How can we help?

  Track Order status FAQ Complaint/Suggestion Contact support (10AM - 7PM ET)

  Home

  RoyBot Assistant 3

  QQ好友QQ空间新浪微博微信朋友圈百度贴吧复制链接

  取消

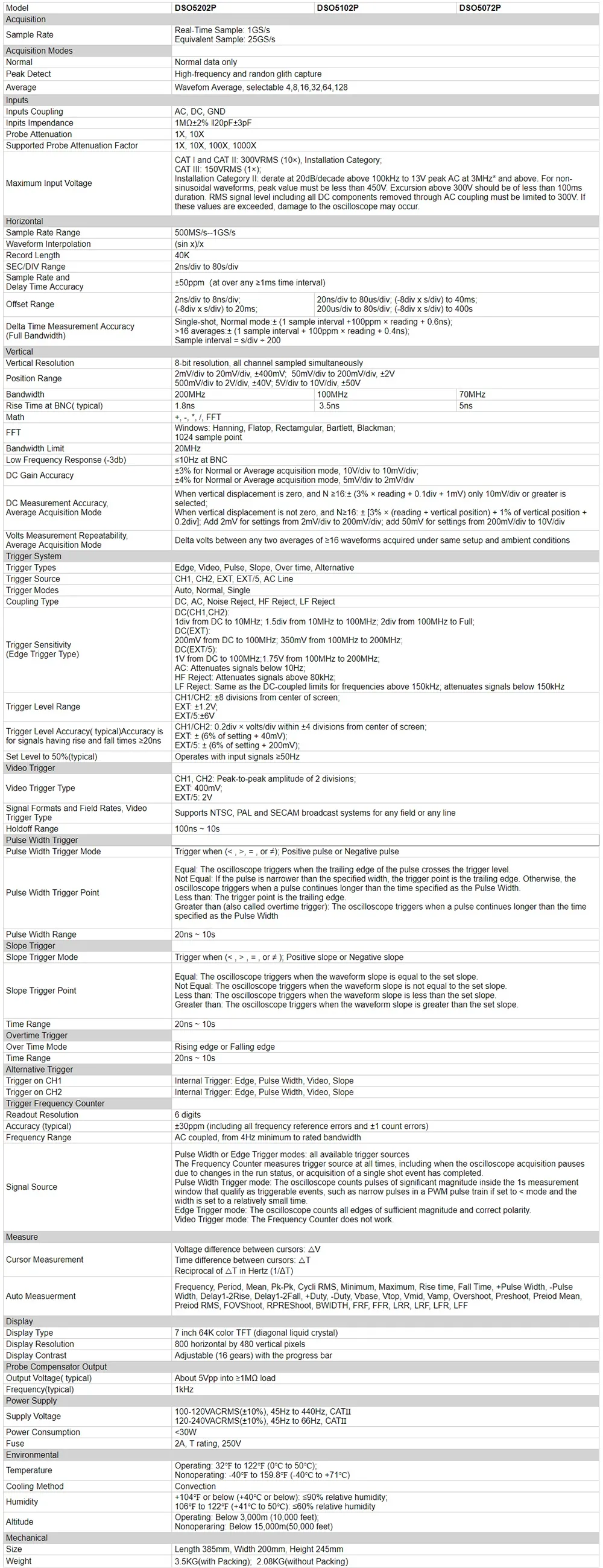

  Model	DSO5102P
