Feature:
- Support X8 mode, with two SH1.08P interfaces, support X8 direct plug.
- Support analog image transmission/for DJI HD image transmission/Avatar HD image transmission, with HD image transmission direct plug interface.
- Support SBUS input signal, Pbus/Wbus/lbus/elrs (CRSF)/TBS, do not support PWM signal and PPM signal input !
- All 5 uart interfaces are led out on the interface, and 5 uart serial devices can be connected, including GPS/elrs/optical flow/image transmission parameter adjustment/camera parameter adjustment/mavlink telemetry/4G image transmission.
- Lead out one l2C, support external magnetic compass.
- 5 LED interfaces, support RGB-LED, support four-arm lights, so that the aircraft routing is clear and organized.

Specification:

Brand: GreatMountain

MCU: AT32F435 VMT7
OSD: AT7456E
FLASH: W25NO1G
BlackBox: W25Q128JVPIQ
Barometer: DPS310
Gyroscope: 42688-P
BEC: 9V 4A 5V 4A Dual BEC
Bec/3.3V: 0.6A
Bec/5V: 3.5A
Bec/9V: 3.5A
Input: 3-6S (10-26.1V)
TVS: Onboard 28V TVS
Fre: 288MHZ
Uart: 5/10(set)
Mounting Hole: 30.5X30.5mm
Material: PCB
Weight: 7.10

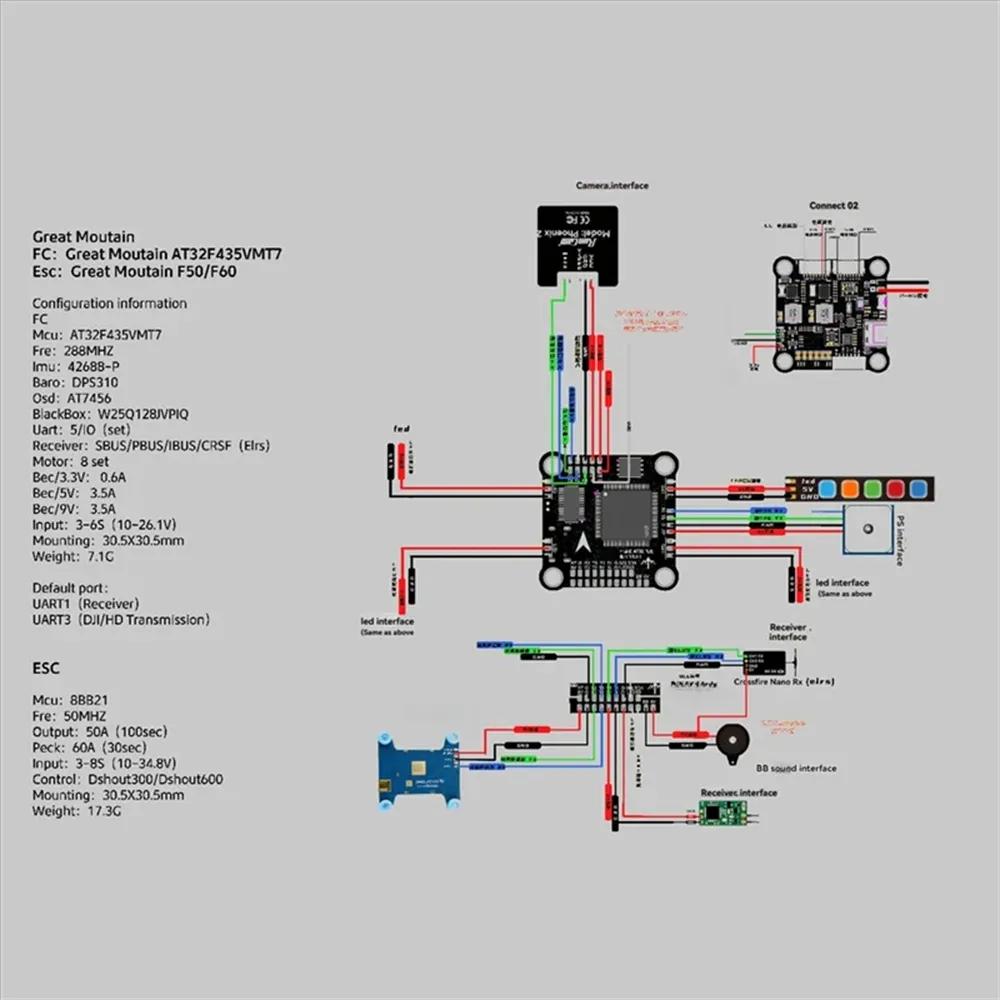

Default port:
UART1 (Receiver)
UART3 (DJI/HD Transmission)

Package Included:

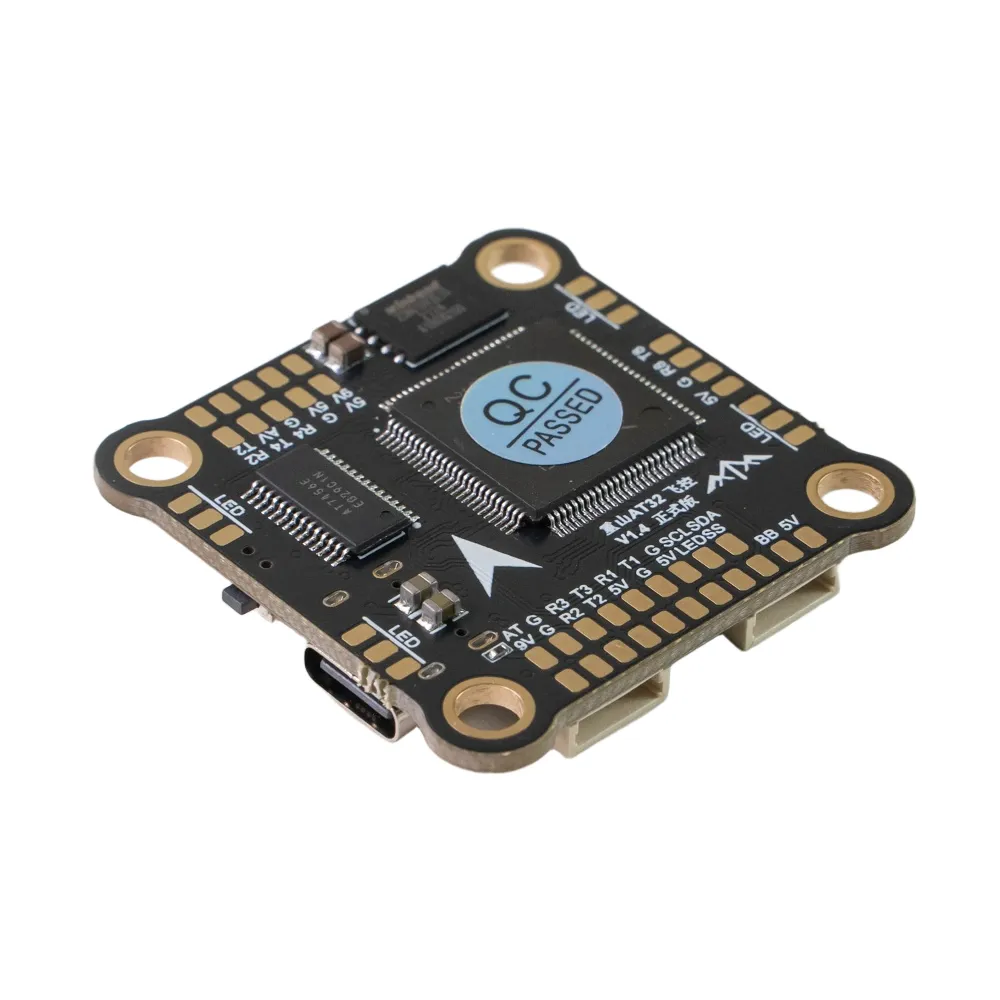

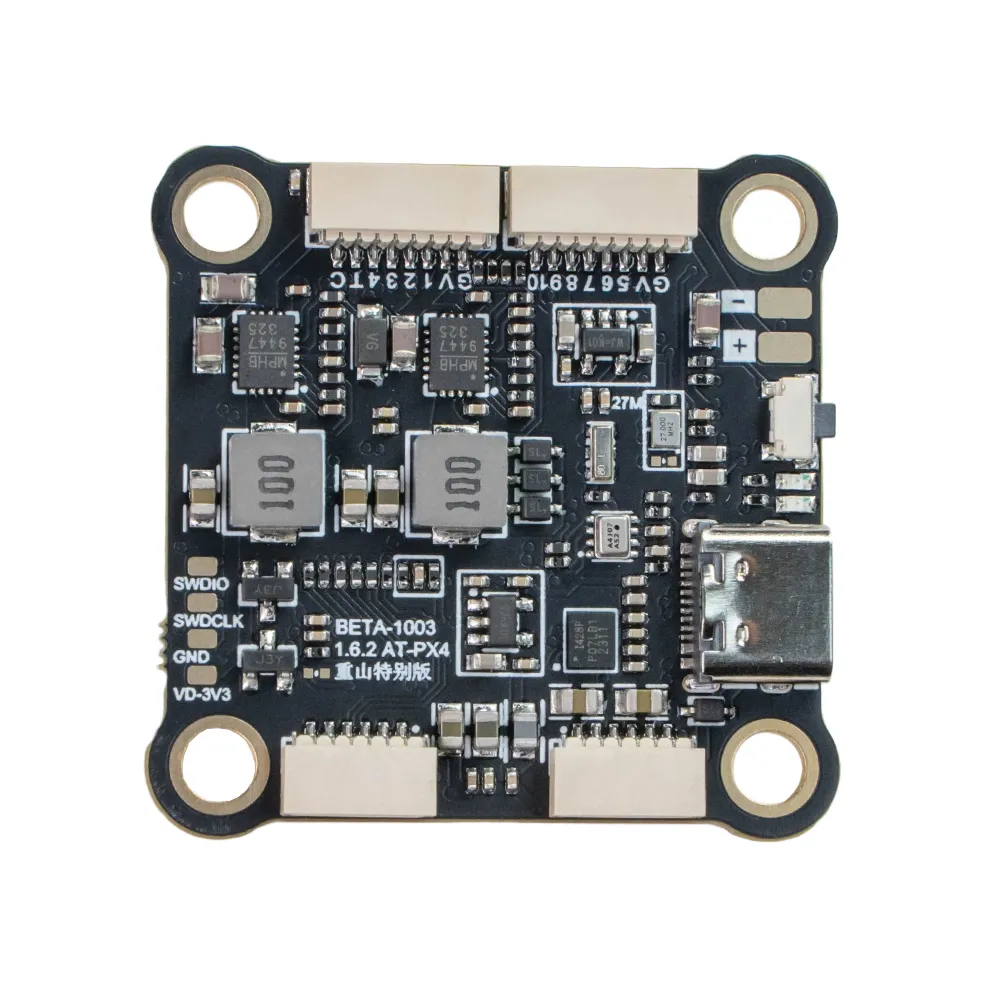

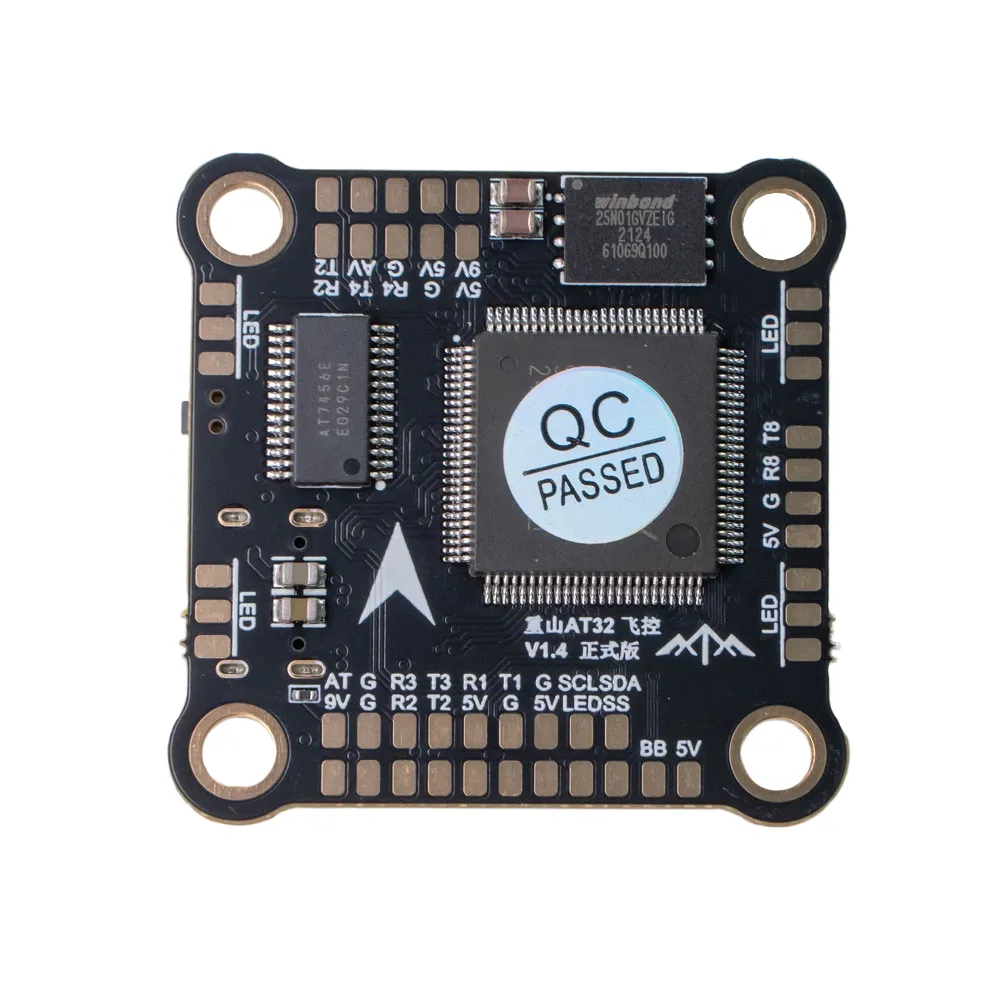

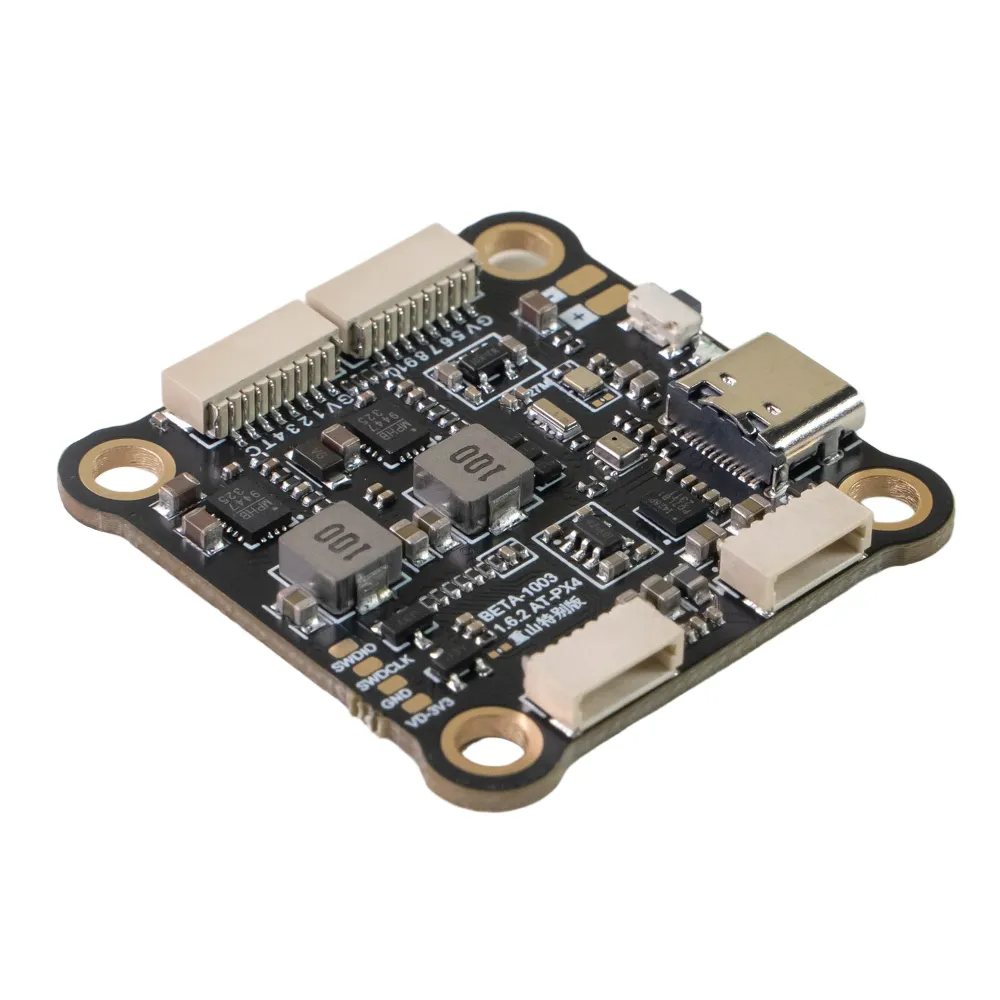

1 x AT32 F435VMT7 Flight Controller
