Specifications:

Voltage Detection Range: DC8-80V
Working Current: u2264 15mA
Display Mode: LCD Screen
Detection Accuracy: ±1%
Refresh Rate: 500ms/time
Opening Size: 58.5mm x 28.5mm
Boundary Dimension: 61.3mm x 33.3mm x 13.5mm
ufeff

Features:

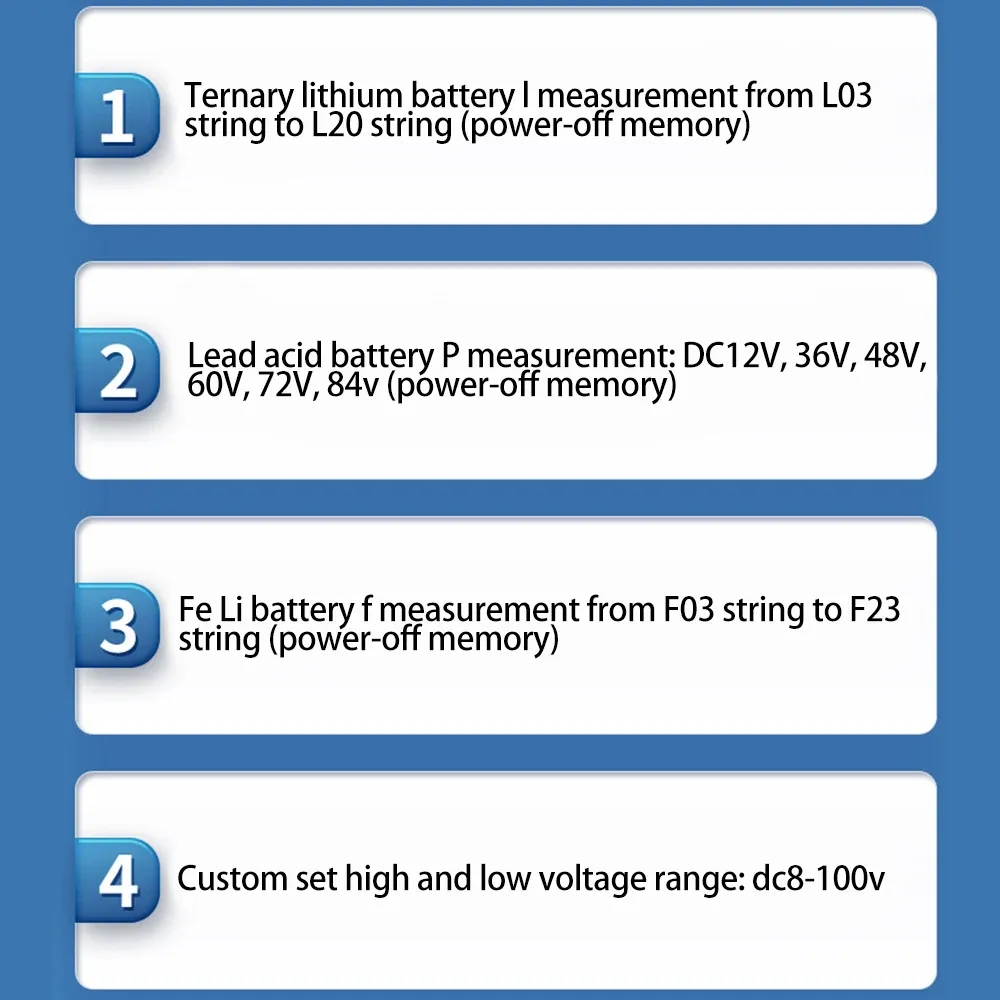

1. Wide Voltage Compatibility:
Supports a broad range of battery systems, including lead-acid, lithium, and LiFePO4 batteries operating between DC 8V-80V, ensuring compatibility with cars, motorcycles, and other battery-powered vehicles.
2. Real-Time Battery Monitoring:

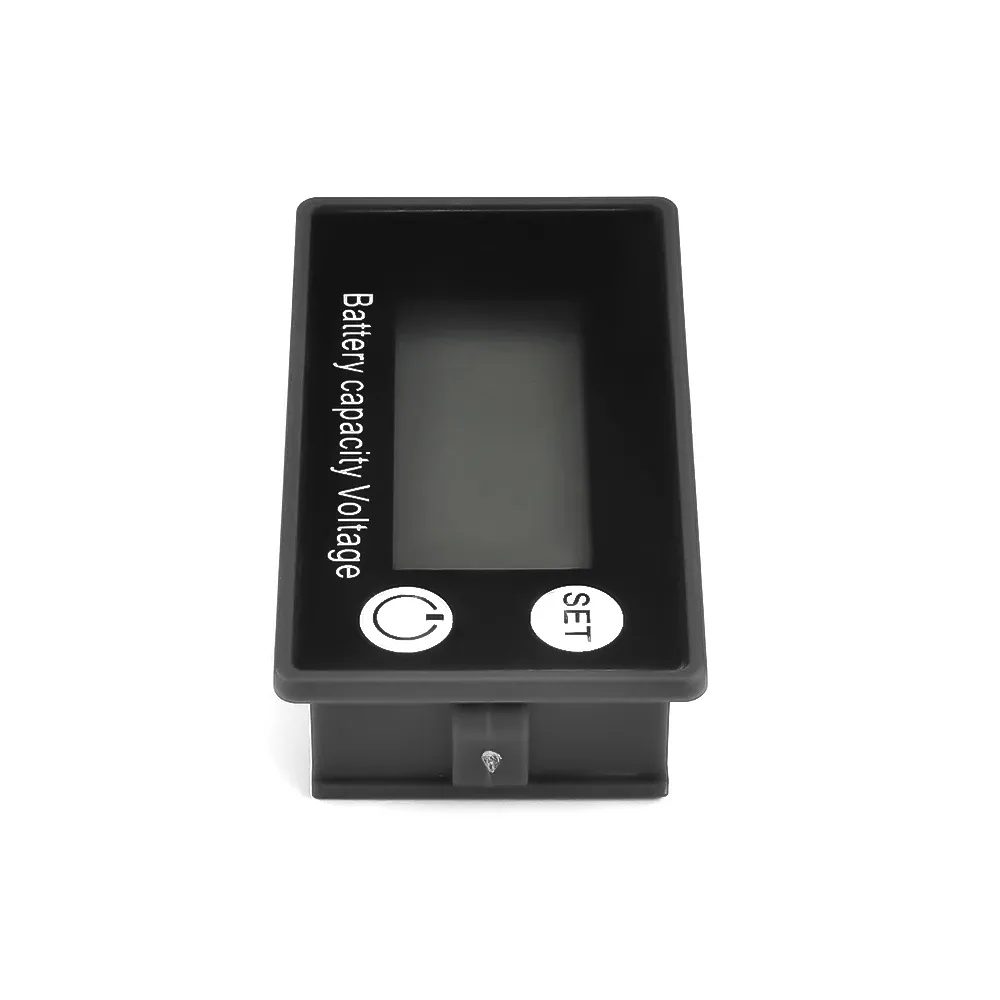

Equipped with a high-resolution LCD screen that provides clear, real-time voltage readings and capacity indicators that help users monitor battery health and performance efficiently.

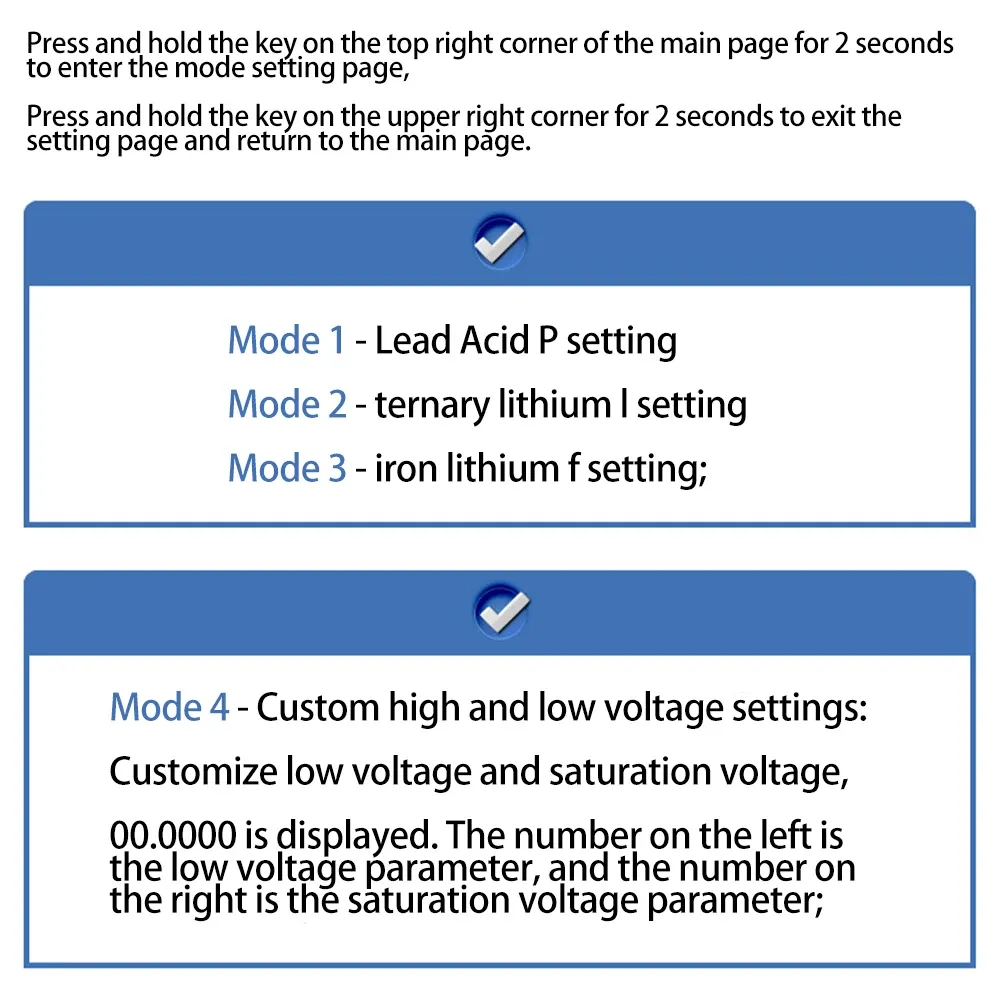

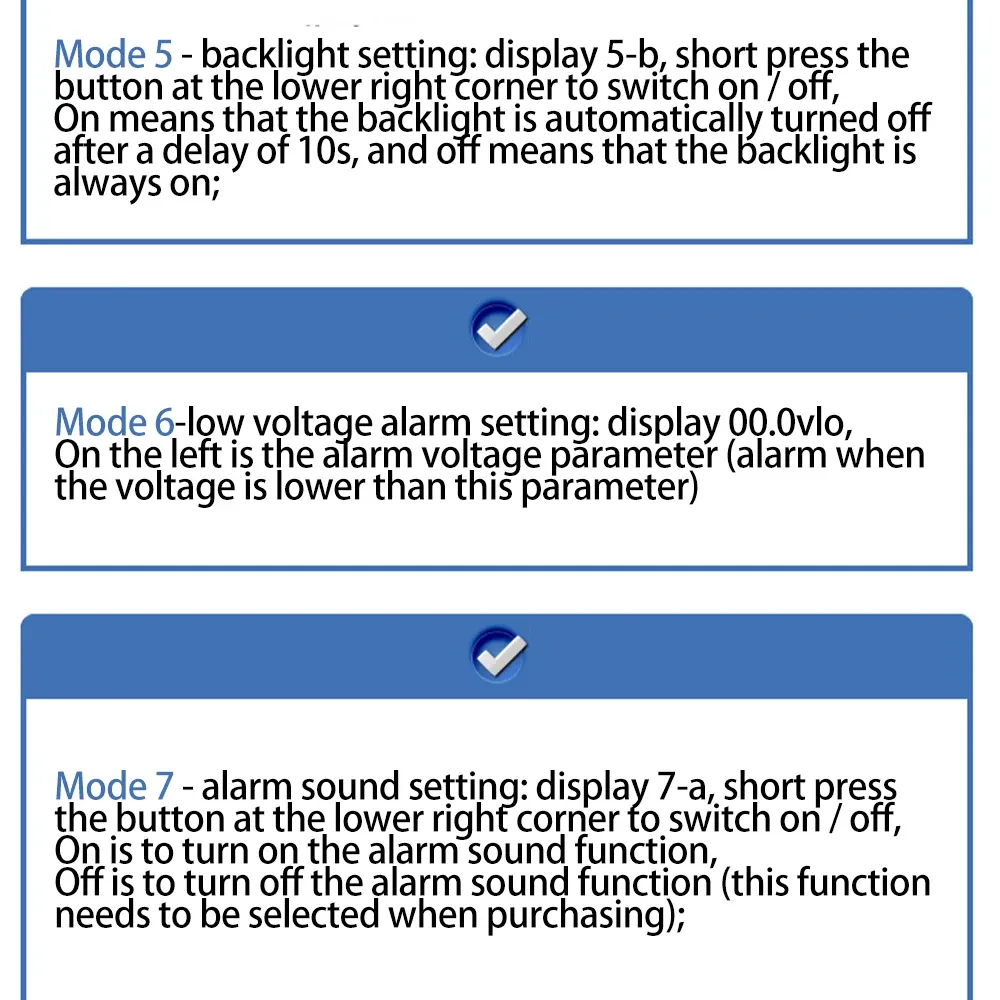

3. Customizable Voltage Range:
The adjustable high and low voltage thresholds cater to varying requirements for different battery types, ensuring optimal performance under diverse applications.
4. Memory Retention Function:
Power-off memory functionality saves user-defined settings such as voltage ranges, allowing seamless operation even after device shutoff or restarting.
5. Compact Design:
The deviceu2019s small form factor and robust construction make it easy to install in tight spaces while enduring prolonged usage in challenging environments.
ufeff

Package Included:

1 x Battery Capacity Indicator
