Specifications:

- Model Types: S3-Touch-LCD-1.46B, S3-Touch-LCD-1.46

- Display: 1.46-inch round touch LCD, 412 x 412 resolution, 16.7M colors

- Processor: ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

- Connectivity: 2.4GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE)

- Memory: 512KB SRAM, 384KB ROM

- Flash & PSRAM: 16MB Flash, 8MB PSRAM

- Sensor: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)

- Ports: USB Type-C

- Additional Features: Built-in gyroscope, microphone, speaker

- Battery Handling: Onboard 3.7V MX1.25 lithium battery recharge/discharge header

- Expansion: Onboard TF card slot

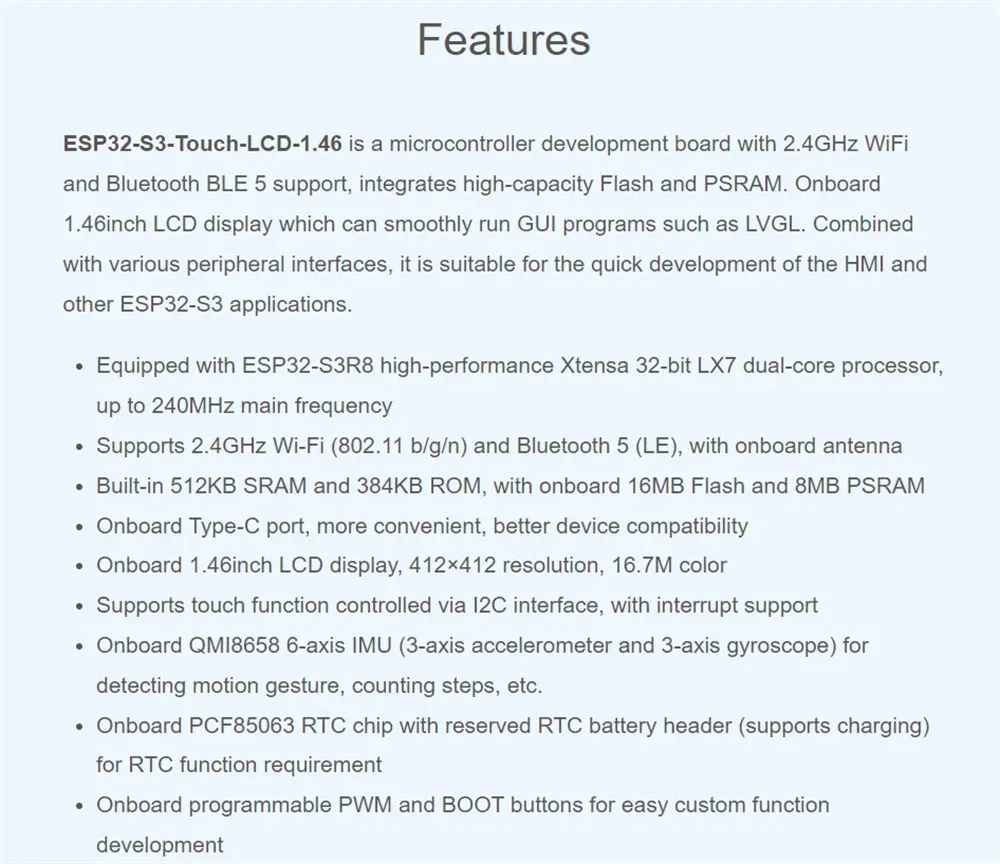

Features:

1. High-Performance Processing: Powered by an ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, this development board offers speeds up to 240MHz, ensuring efficient processing for intricate applications.

2. Superior Display Quality: The 1.46-inch round touch LCD delivers a sharp 412x412 resolution with 16.7M colors, ideal for high-quality graphical user interfaces and clear visual representation.

3. Comprehensive Connectivity: Equipped with 2.4GHz Wi-Fi and Bluetooth 5 (LE), the board ensures seamless wireless communication and integration within IoT ecosystems.

4. Advanced Sensor Capabilities: The onboard QMI8658 6-axis IMU featuring a 3-axis accelerometer and 3-axis gyroscope provides precise motion sensing capabilities, enhancing functionality for gesture control and movement tracking.

5. Extensive Peripheral Support: With multiple GPIO pins, USB Type-C port, built-in microphone and speaker, and a TF card slot for storage, this board supports diverse functionalities, making it easy for users to customize and expand their projects.

Package Included:

1x 1.46 inch round touch LCD development board
