Due to lighting conditions during photography, there may be slight color differences. Buyers who are concerned about this should purchase with caution.

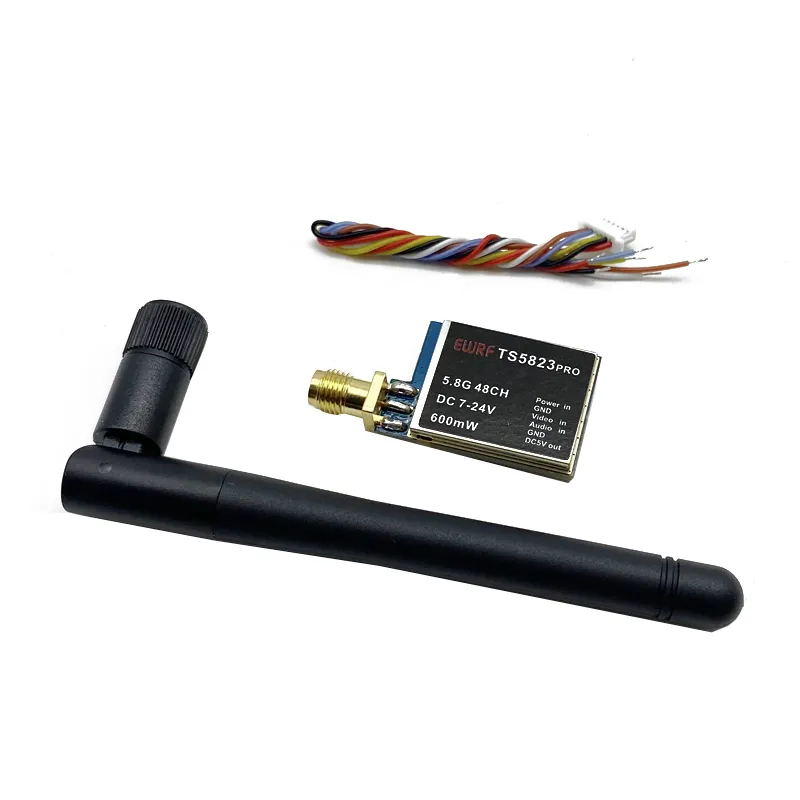

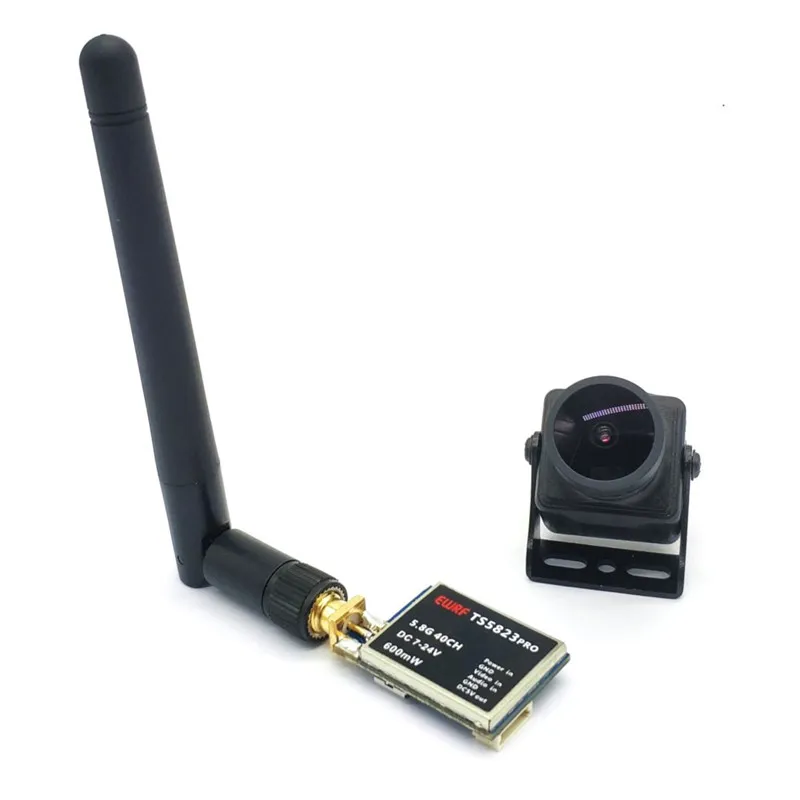

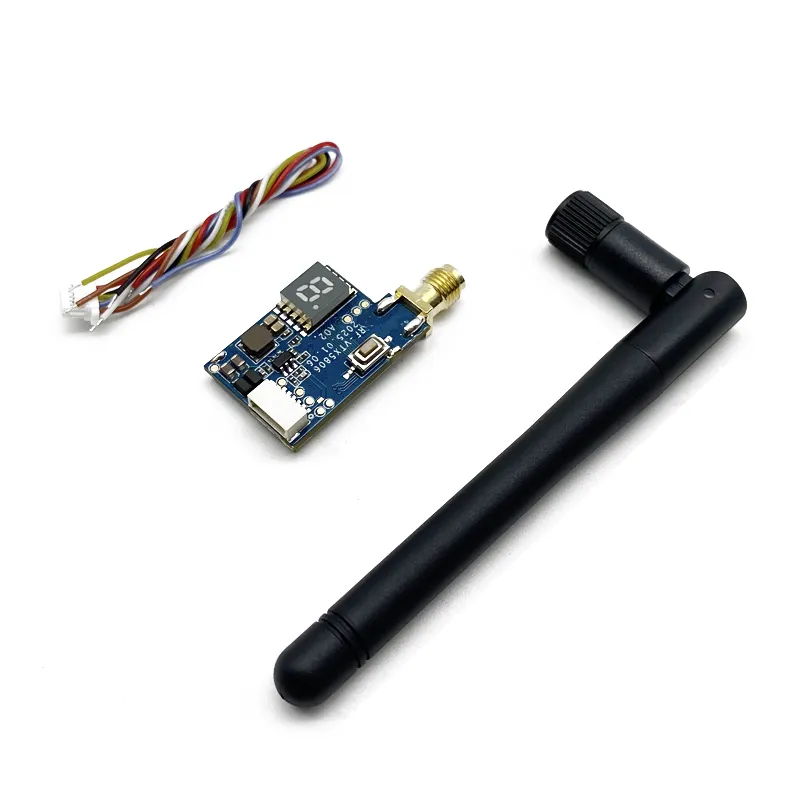

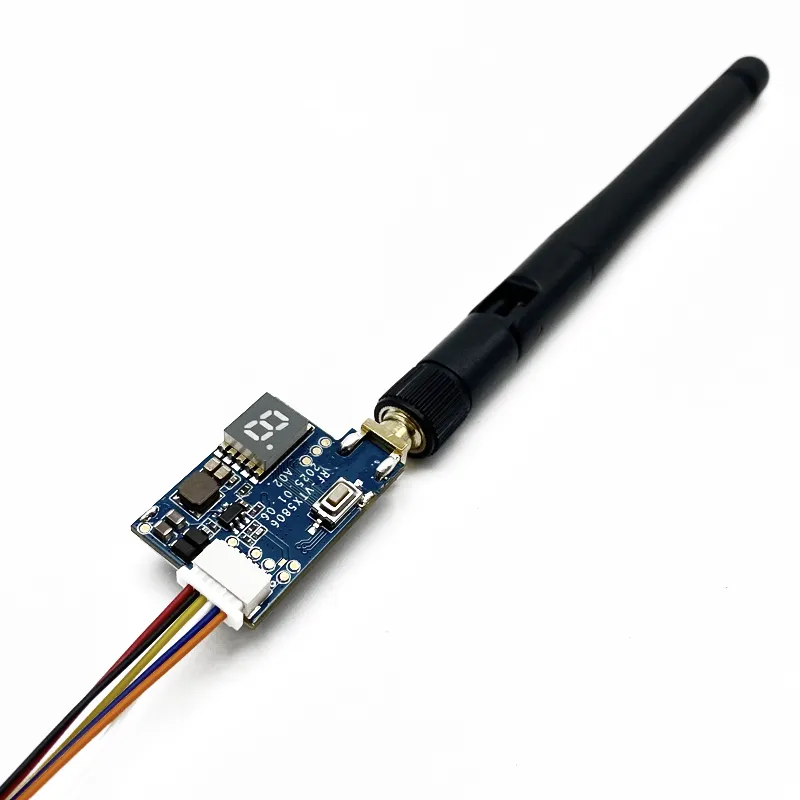

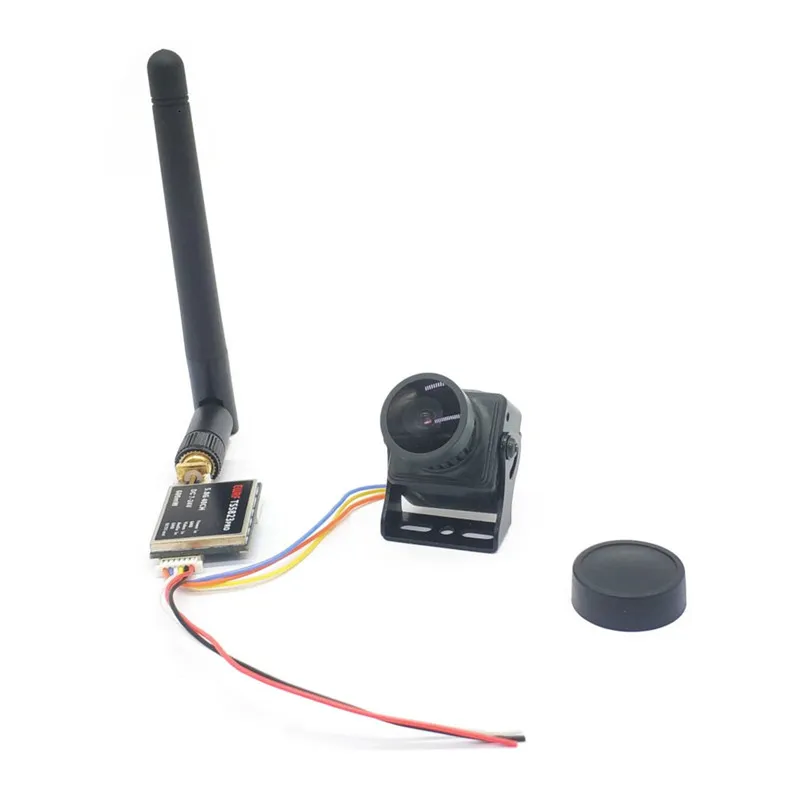

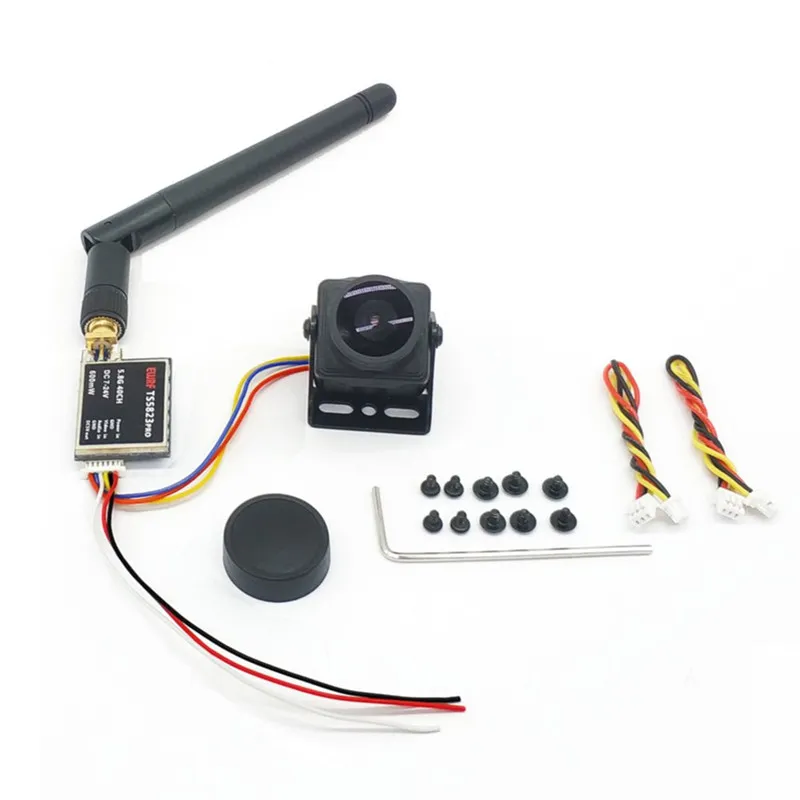

EWRF is a brand dedicated to the production of FPV transmission equipment and RC accessories. Its products are widely used in drone racing, aerial photography, and remote-controlled modeling. The Upgraded TS5823 Pro is a high-performance 5.8GHz video transmitter designed for FPV enthusiasts who seekk the ultimate flying experience. Through continuous technological upgrades and optimizations, this product delivers stable and clear video transmission, making it a reliable choice for FPV flight.
Features:
High Power and Multiple Channels: Equipped with a 600mW transmission power (with Pitmode off), it offers 40 channel options to ensure stable signals even in complex environments. Overheating protection to prevent premature damage.
Lightweight Design: Weighing only 5 grams and measuring 30x20x8mm, it is perfect for small drones and lightweight aircraft.
High-Definition Video Transmission: Paired with a CMOS 1200TVL camera, it supports both PAL and NTSC formats, providing clear and detailed image quality.

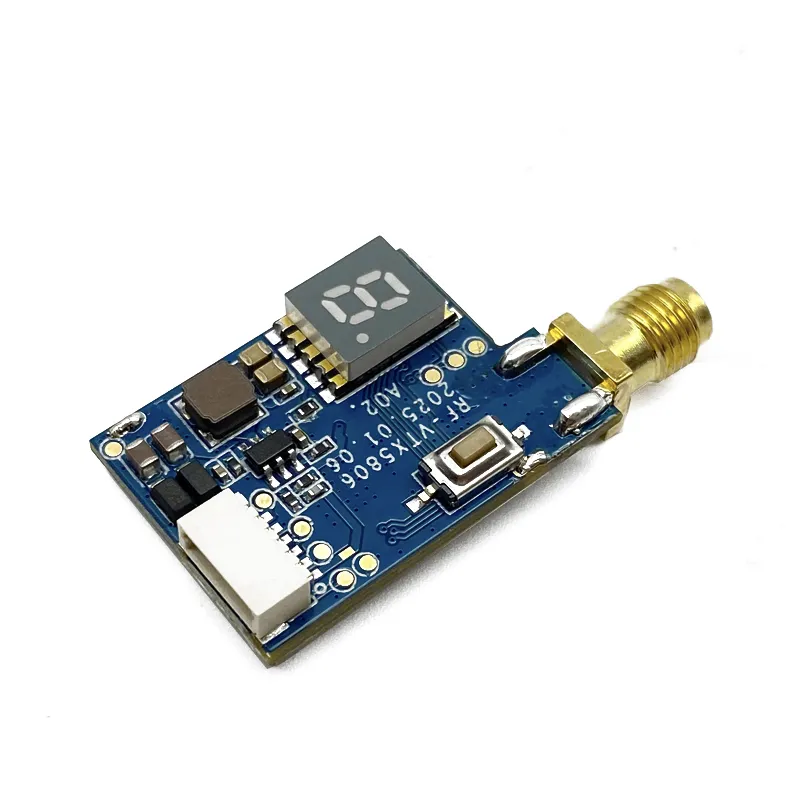

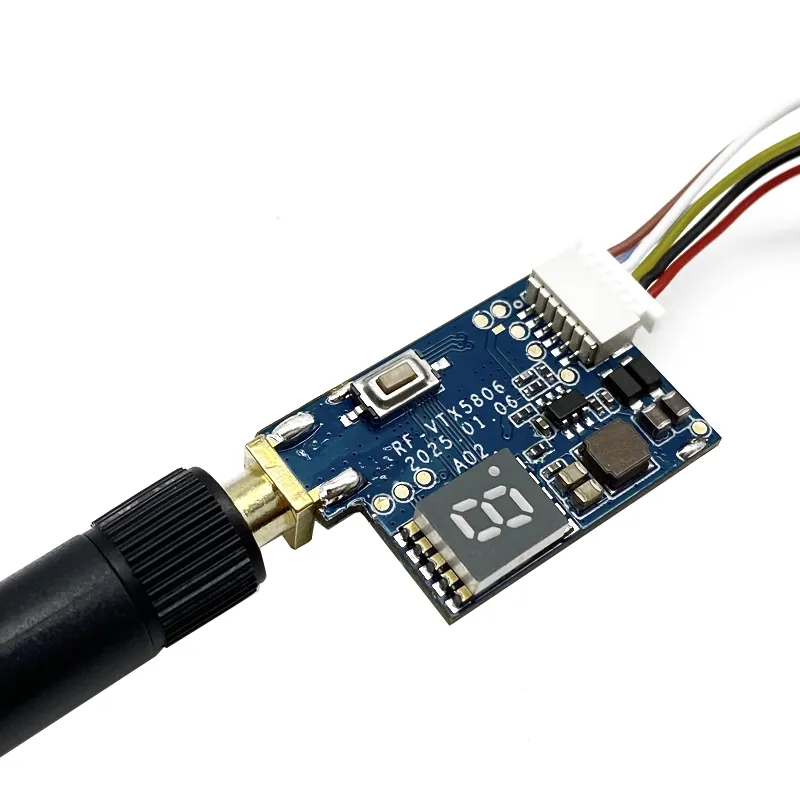

Smart Features: It features a digital display that intuitively shows channel, band, and frequency information. It also includes overheat protection to prevent device damage.
Strong Compatibility: It supports a 5V BEC output, which can directly power the camera and remote control receiver, simplifying wiring.
User-Friendly: Simple button operations allow for easy channel switching and parameter settings, suitable for both beginners and professional pilots.
Distance : (Both the transmitting and receiving antennas are used, in a relatively open and unobstructed environment) Aircraft: about 1-2 kilometers. Car and ship models: about 50-200 meters.
The Upgraded TS5823 Pro is a high-performance, lightweight, and intelligent FPV video transmitter, ideal for those who pursue the ultimate flying experience.
Description:
Brand Name:
EWRF
Item Name:
FPV Transmitter + Camera Combo

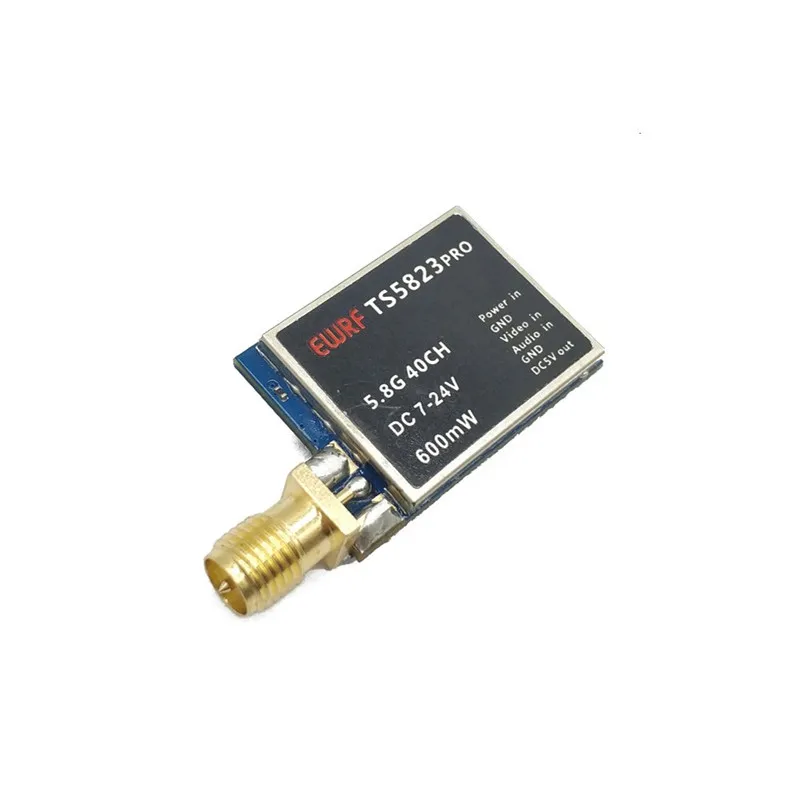

Specifications of FPV Transmitter:
Item Name:
TS5823Pro
Frequency:
5.8G
Channel:
40
Transmitting Power:
600mW/OFF(Pitmode)
Working Current:
230mA (12V)
Power Supply:
DC 7-24V
Weight:
5g
Dimension:
30x20x8mm

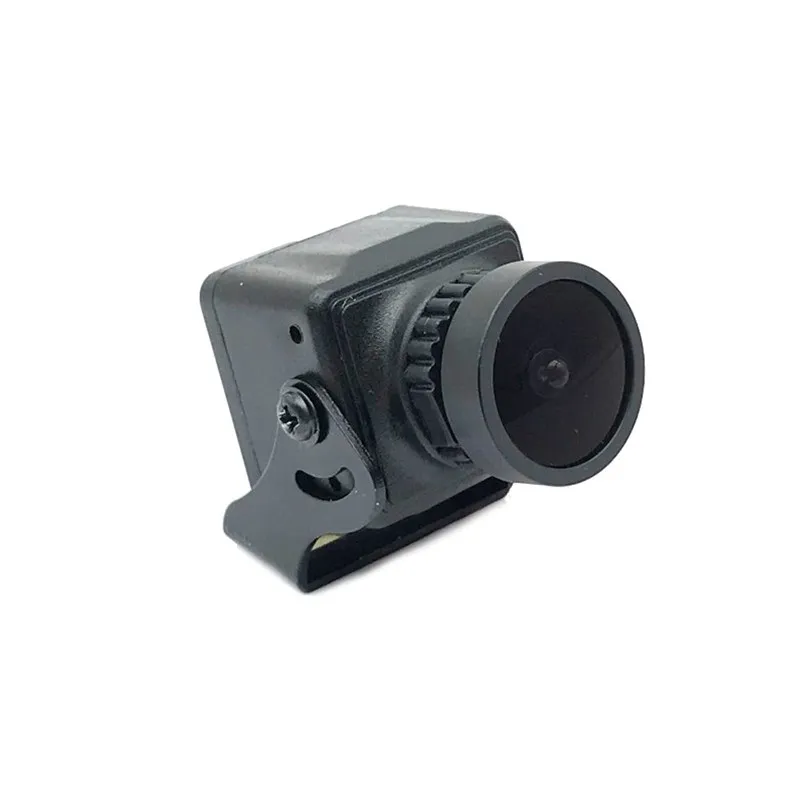

Specifications of FPV Camera:
Horizontal Resolution :
1200TVL
Format :
PAL
FOV
130°
PAL:
1920H x 1080V(1MP)
NTSC:
1020H x 1920V (1MP)
Video Output :
1.0Vp p/75ohm
AGC :
0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB
White Balance:
ON/OFF
Exposure Type:
Electronic Exposure
Electronic Shutter :
1/50(1/60) 1/100000 Second
Gamma Correction :
0.45/1.0
Synchronization Mode :
Inter Sync
Lens:
2.5mm
Working Voltag:
DC 5 to 12V(Wide Voltag, Measured 5 to 13V)
Working Current:
70mA(ow power consumption)
Working Temp.:
-20 degree to 60 degree
Wetness:
0% ~ 98%
Size:
22mm x 22mm
User Guide
1. Setting
After power on, the digital display shows the following three parameters in turn: band, channel, and frequency. Press and hold the button can be entered into the parameters setting.- Press and hold the button, the digital display will shows the alphabet for band( A-B - C1- D -E) , press the button can select the bands.
- Press and hold the button again, When the digital display shows the Arabic numerals for the channel (1-8), press the button can select the channels.
- Finally, press and hold the button, VTX is back to normal working state and the band, channel, frequency will display in turn on the digital display.
2. Pitmode Work State
- Press the button twice will toggle the ON/ OFF of Pitmode.
- Pitmode work state: Press the button twice, the red dot appears on the right bottom of the digital display which means the VTX is off.
- Normal working state: Press the button twice again, the red dot disappear on the right bottom of the digital display which means the VTX is on, the VTX is back to normal working state.
- Pitmode transmits a tiny amount of power and the transmitting distance is about 2- 3 meters.
Frequency(Mhz):
Band
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
A
5865
5845
5825
5805
5785
5765
5745
5725
b
5733
5752
5771
5790
5809
5828
5847
5866
C
5705
5685
5665
5645
5885
5905
5925
5945
d
5740
5760
5780
5800
5820
5840
5860
5880
E
5658
5695
5732
5769
5806
5843
5880
5917
Note:1.Make sure that there is enough space for airflow when installing the module on the drone.
2. Please install the antenna before powering up for a longer use life.
