    Notice:

    1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.
    2. It Comes unassembled. Need build by buyers.

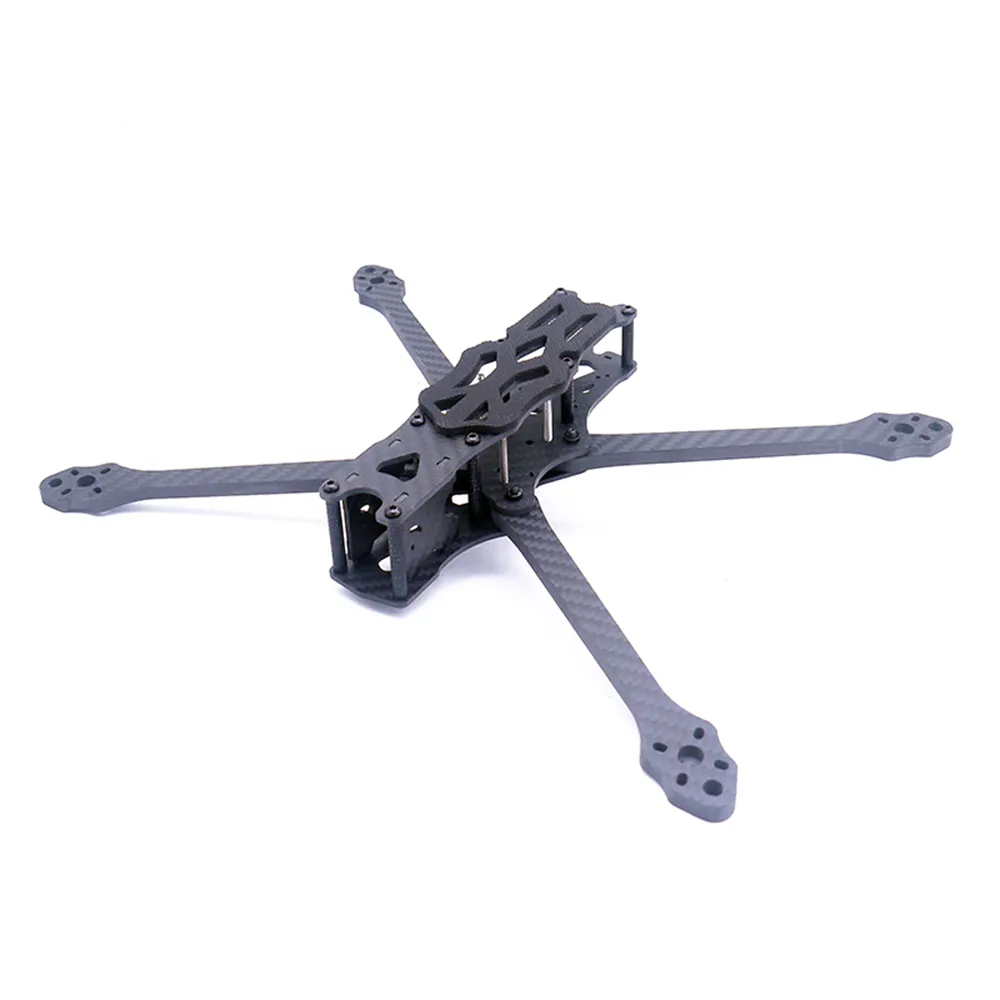

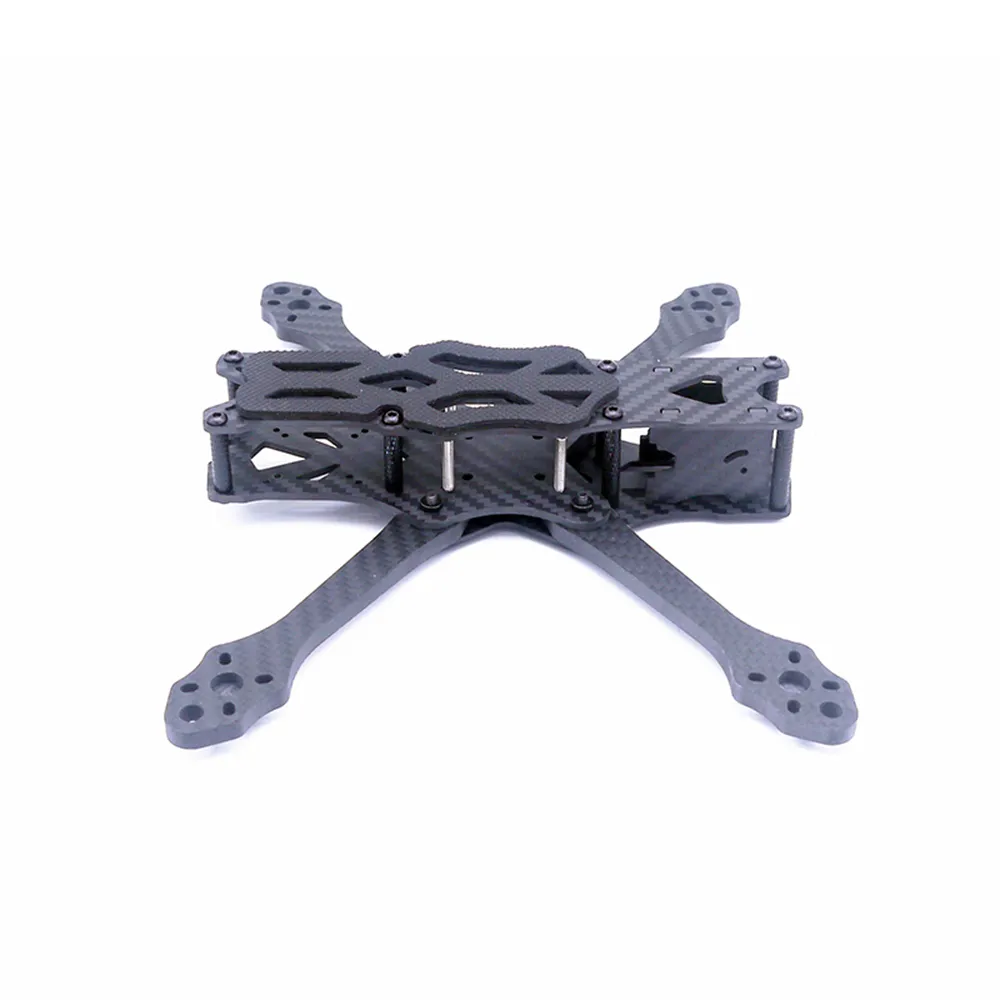

    Specifications:

    Brand: TEOSAW
    Model:
    APEX X5/X6/X7
    Item Name: 5 Inch/6 Inch/7 Inch Frame Kit


    Model:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    APEX X5
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    APEX X6
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    APEX X7
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Wheelbase:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    225mm
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    275mm
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    315mm
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Appearance Size:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Approx.165mm x 213mm x 35mm
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Approx.189mm x 253mm x 35mm
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Approx.212mm x 286mm x 35mm
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">

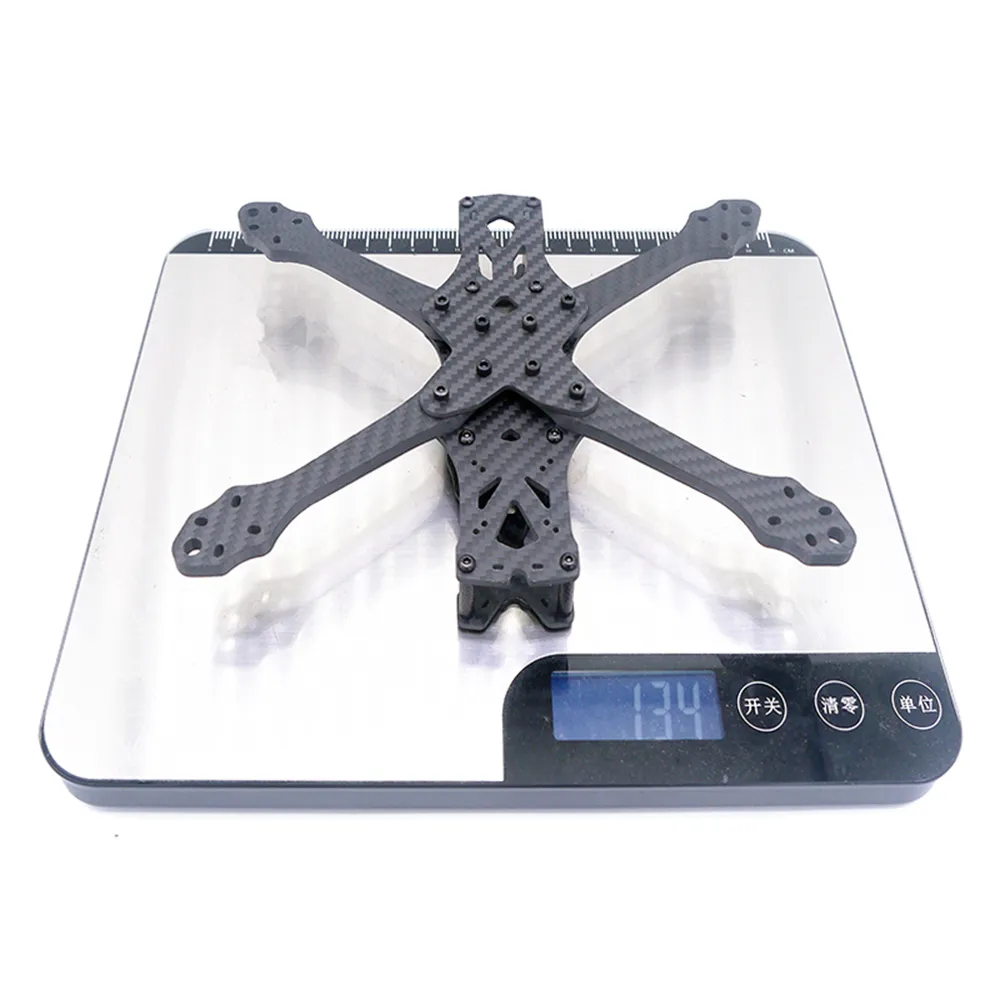

    Weight:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Approx.134g
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Approx.143g
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Approx.151g
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Structure:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    X-type split
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Thickness:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Arm 5.5mm, bottom plate 2.5mm, splint 2.5mm, upper plate 2.0mm, side plate 2.0mm
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Applicable Propeller Size:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    5-5.1 Inch
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    6 Inch
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    7 Inch
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    FC Mounting Hole:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    20*20mm(M3),30.5*30.5mm(M3)
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    VTX
    Mounting Hole
    :
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    20*20mm(M2),25.5*25.5mm(M2)
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Camera Installation Width:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    20mm/19mm
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Internal Height:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Approx.20-28mm
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Motor
    Mounting Hole
    :
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    16*16mm(M3),19mm*19mm(M3)
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">

    Compatible VTX
    :
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    DJI O3 Air Unit/VISTA Sky Unit/Analog, etc.
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Sheet Material:
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    3K(T700)
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Remarks
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    APEX X series (5-inch/6-inch/7-inch), only the arm length is different, the body size is the same
    font-size:10.5000pt;mso-font-kerning:1.0000pt;">


    Features:


    mso-font-kerning:1.0000pt;">1. Versatile Prop Compatibility: Supports prop sizes of 5-5.1 inch (X5), 6 inch (X6), and 7 inch (X7), catering to various racing needs and preferences.
    mso-font-kerning:1.0000pt;">


    mso-font-kerning:1.0000pt;">2. Optimized Weight Distribution: With weights of 134g (X5), 143g (X6), and 151g (X7), the frames ensure optimal balance and handling during high-speed flights.
    mso-font-kerning:1.0000pt;">


    mso-font-kerning:1.0000pt;">3. Integrated Camera Mounts: Features versatile camera installation depths of 20mm/19mm, supporting different camera setups for enhanced FPV experiences.
    mso-font-kerning:1.0000pt;">


    mso-font-kerning:1.0000pt;">4. Easy Assembly and Maintenance: Pre-drilled holes for flight controllers and motor mounts ease the assembly process, ensuring quick setup and easy maintenance.
    mso-font-kerning:1.0000pt;">


    mso-font-kerning:1.0000pt;">


    Recommend Parts: ( NOT Included)
    FC & ESC: 20x20mm SpeedyBee F405 Mini F4 / 30.5x30.5mm SpeedyBee F405 V4

    Camera: CADDX Ratel Pro 1/1.8" Inch 1500TVL
    Brushless Motor: MAMBA TOKA 2306.5 1650KV 1770KV 4-6S 2770KV 3-4S / Emax ECO II 2807 6S 1300KV 5S 1500KV 4S 1700KV
    Propeller: 6 Pairs Gemfan 5128 5.1x2.8 5.1 Inch 3-Blade PC Propeller / Gemfan F7036 7inch 3-Blade / 2-Blade Foldable Propeller


    mso-font-kerning:1.0000pt;">


    Package included:


    mso-font-kerning:1.0000pt;">1x APEX X5/APEX X6/APEX X7 Frame
    mso-font-kerning:1.0000pt;">


    mso-font-kerning:1.0000pt;">
